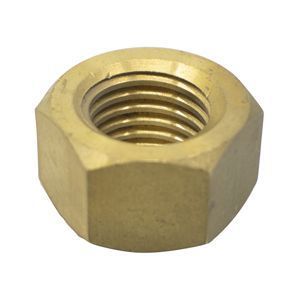

Brass Hex Nut

Brass Hex Nuts are manufactured from an alloy of copper and zinc. Dimensional specifications are governed by ASME B18.2.2 for finish nuts, and ASME B18.6.3 for the smaller diameter machine nuts. There are no grade markings on brass hex nuts. Brass fasteners are commonly used by electrical and communications industries, builders hardware and some marine applications. These nuts provide corrosion resistance in wet environments, offers thermal and electrical conductivity, and are nonmagnetic.

Products
Governing Standards
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsBrass

Per ASME B18.2.2-2015
Nominal Diameter		UNC	UNF	F			G		H
				Width Across Flats			Width Across Corners		Thickness
				Basic	Max	Min	Max	Min	Basic	Max	Min
#0	0.060	80	80	5/32	0.1560	0.1500	0.2210	0.2060	5/32	0.0500	0.0430
#1	0.073	64	72	5/32	0.1560	0.1500	0.2210	0.2060	5/32	0.0500	0.0430
#2	0.086	56	72	3/16	0.1880	0.1800	0.2650	0.2050	3/16	0.0660	0.0570
#3	0.099	48	64	3/16	0.1880	0.1800	0.2650	0.2050	3/16	0.0660	0.0570
#4	0.112	40	48	1/4	0.2500	0.2410	0.2890	0.2750	1/4	0.0980	0.0870
#5	0.125	40	44	5/16	0.3120	0.3020	0.3610	0.3440	5/16	0.1140	0.1020
#6	0.138	32	40	5/16	0.3120	0.3020	0.3610	0.3440	5/16	0.1140	0.1020
#8	0.164	32	36	11/32	0.3440	0.3320	0.3970	1.2540	11/32	0.1300	0.1170
#10	0.190	24	32	3/8	0.3750	0.3620	0.4330	1.4650	3/8	0.1300	0.1170
#12	0.216	24	28	7/16	0.4380	0.4380	0.5050	1.6750	7/16	0.1610	0.1480
1/4	0.2500	20	28	7/16	0.4380	0.4280	0.5050	0.4880	7/32	0.2260	0.2120
5/16	0.3125	18	24	1/2	0.5000	0.4890	0.5770	0.5570	17/64	0.2730	0.2580
3/8	0.3750	16	24	9/16	0.5630	0.5510	0.6500	0.6280	21/64	0.3370	0.3200
7/16	0.4375	14	20	11/16	0.6880	0.6750	0.7940	0.7680	3/8	0.3850	0.3650
1/2	0.5000	13	20	3/4	0.7500	0.7300	0.8660	0.8400	7/16	0.4480	0.4270
9/16	0.5625	12	18	7/8	0.8750	0.8610	1.0100	0.9820	31/64	0.4960	0.4730
5/8	0.6250	11	18	15/16	0.9380	0.9220	1.0830	1.0510	35/64	0.5590	0.5350
3/4	0.7500	10	16	1 1/8	1.1250	1.0880	1.2990	1.2400	41/64	0.6650	0.6170
7/8	0.8750	9	14	1 5/16	1.3120	1.2690	1.5160	1.4470	3/4	0.7760	0.7240
1	1.0000	8	14	1 1/2	1.5000	1.4500	1.7320	1.6530	55/64	0.8870	0.8310
1 1/8	1.1250	7	12	1 11/16	1.6880	1.6310	1.9490	1.8590	31/32	0.9990	0.9390
1 1/4	1.2500	7	12	1 7/8	1.8750	1.8120	2.1650	2.0660	1 1/16	1.0940	1.0300
1 3/8	1.3750	6	12	2 1/16	2.0620	1.9940	2.3820	2.2730	1 11/16	1.2060	1.3800
1 1/2	1.5000	6	12	2 1/4	2.2500	2.1750	2.5980	2.4800	1 9/32	1.3170	1.2450

All dimensions are in inches.

Brass Hex Nut

of 1

Sort By

Show

View

Diameter Thread Pitch Width Across Flats Height of Nut Item # Availability Price Quantity UOM

1/4

0.0870

NFBR440

In Stock

$0.08169/EA

See Quantity Discounts

#4-40 BRASS MACHINE HEX NUT

$0.08169/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.08169/ EA
4810	$0.07653/ EA
19210	$0.06816/ EA
76830	$0.04516/ EA

5/16

0.3125

NFBR540

3-5 Working Days

$0.08173/EA

See Quantity Discounts

#5-40 BRASS HEX NUT

$0.08173/EA

Qty

3-5 Working Days

Product Detail

Quantity	Price
Quantity	Price
1	$0.08173/ EA
2340	$0.07657/ EA
9340	$0.06819/ EA
37350	$0.04519/ EA

5/16

0.1020

NFBR632

In Stock

$0.15358/EA

See Quantity Discounts

#6-32 BRASS MACHINE HEX NUT

$0.15358/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.15358/ EA
2360	$0.14387/ EA
9430	$0.12813/ EA
37690	$0.08491/ EA

11/32

0.1170

NFBR832

In Stock

$0.11532/EA

See Quantity Discounts

#8-32 BRASS MACHINE HEX NUT

$0.11532/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.11532/ EA
1880	$0.10804/ EA
7500	$0.09622/ EA
29980	$0.06376/ EA

#10

3/8

0.1170

NFBR102

3-5 Working Days

$0.09277/EA

See Quantity Discounts

#10-24 BRASS MACHINE HEX NUT

$0.09277/EA

Qty

3-5 Working Days

Product Detail

Quantity	Price
Quantity	Price
1	$0.09277/ EA
1670	$0.08691/ EA
6670	$0.0774/ EA
26650	$0.05129/ EA

#10

3/8

0.1170

NFBR103

In Stock

$0.11819/EA

See Quantity Discounts

#10-32 BRASS MACHINE HEX NUT

$0.11819/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.11819/ EA
1670	$0.11072/ EA
6670	$0.0986/ EA
26650	$0.06534/ EA

#12

7/16

0.1480

NFBR1220000

In Stock

$0.25868/EA

See Quantity Discounts

#12-24 BRASS MACHINE HEX NUT

$0.25868/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.25868/ EA
1880	$0.24234/ EA
7500	$0.21582/ EA
33720	$0.14302/ EA

1/4

7/16

0.2120

NFBR0250000

In Stock

$0.33829/EA

See Quantity Discounts

1/4-20 BRASS HEX NUT

$0.33829/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.33829/ EA
1350	$0.31692/ EA
5390	$0.28224/ EA
24230	$0.18703/ EA

5/16

1/2

0.2580

NFBR0310000

In Stock

$0.32519/EA

See Quantity Discounts

5/16-18 BRASS HEX NUT

$0.32519/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.32519/ EA
900	$0.3048/ EA
3600	$0.27103/ EA
16190	$0.1806/ EA

3/8

9/16

0.3200

NFBR0370000

In Stock

$0.70902/EA

See Quantity Discounts

3/8-16 BRASS HEX NUT

$0.70902/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.70902/ EA
620	$0.66529/ EA
2480	$0.59032/ EA
11130	$0.39637/ EA

7/16

11/16

0.3650

NFBR0430000

In Stock

$0.21653/EA

See Quantity Discounts

7/16-14 BRASS HEX NUT

$0.21653/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.21653/ EA
540	$0.2036/ EA
2130	$0.17996/ EA
9580	$0.12328/ EA

1/2

3/4

0.4270

NFBR0500000

In Stock

$1.15956/EA

See Quantity Discounts

1/2-13 BRASS HEX NUT

$1.15956/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$1.15956/ EA
270	$1.09107/ EA
1060	$0.96409/ EA
4750	$0.66421/ EA

9/16

7/8

0.4730

NFBR0560000

In Stock

$0.82556/EA

See Quantity Discounts

9/16-12 BRASS HEX NUT

$0.82556/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.82556/ EA
170	$0.77681/ EA
680	$0.6864/ EA
3060	$0.47289/ EA

5/8

15/16

0.5350

NFBR0620000

In Stock

$1.91426/EA

See Quantity Discounts

5/8-11 BRASS HEX NUT

$1.91426/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$1.91426/ EA
140	$1.80303/ EA
540	$1.59094/ EA
2430	$1.10457/ EA

3/4

1 1/8

0.6170

NFBR0750000

In Stock

$3.61897/EA

See Quantity Discounts

3/4-10 BRASS HEX NUT

$3.61897/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$3.61897/ EA
90	$3.41123/ EA
340	$3.00913/ EA
1500	$2.10552/ EA

7/8

1 5/16

0.7240

NFBR0870000

In Stock

$5.27302/EA

See Quantity Discounts

7/8-9 BRASS HEX NUT

$5.27302/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$5.27302/ EA
60	$4.97476/ EA
210	$4.38442/ EA
940	$3.08657/ EA

1 1/2

0.8310

NFBR1000000

In Stock

$11.90619/EA

See Quantity Discounts

1-8 BRASS HEX NUT

$11.90619/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$11.90619/ EA
40	$11.23916/ EA
140	$9.9055/ EA
630	$7.01127/ EA

1 1/4

1 7/8

1.0625

NFBR1250000

In Stock

$39.34269/EA

See Quantity Discounts

1 1/4-7 BRASS HEX NUT

$39.34269/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$39.34269/ EA
25	$37.13855/ EA
70	$32.73162/ EA
500	$23.16798/ EA

ASME B18.2.2	Covers the complete general and dimensional data for the various types of inch series square and hex nuts, including machine screw nuts and coupling nuts.
ASME B1.1 UNC & UNF Class 2B	Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads.
