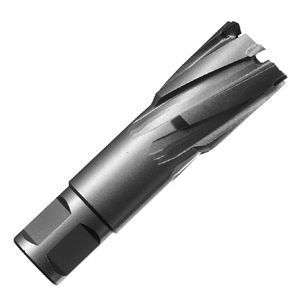

Carbide Tipped Annular Cutter

Carbide tipped annular cutters are high performance tools for drilling more holes, through more materials… faster. Maximize the performance of any portable magnetic drill press. Cut holes in cast iron, steel, stainless, and ultra hard or exotic alloys with the added ability to produce overlapping or interrupted holes easily. Used in conjunction with a magnetic drill press, holes are drilled more than 400% faster compared to a conventional twist drill. Annular cutters drill faster and more efficiently as they remove the material around the OD of the hole, leaving a solid core, or plug that is ejected from the cutter via a spring loaded pin in the drill's arbor. Less material removed equals faster drilling and longer tool life. Carbide Tipped Annular Cutters are superior to high speed steel in every way. They drill faster, longer, and drill a wider range of materials.

Carbide Tipped Annular Cutter Material & Speed Recommendations

Diameter Steel Stainless Steel
9/16 to 13/16 700 - 1000 300 - 700
7/8 to 1-3/16 500 - 800 200 - 450
1-1/4 to 1-9/16 300 - 600 175 - 315
1-5/8 to 2 200 - 500 120 - 225
2-1/16 to 2-3/8 200 - 400 95 - 195
2-7/16 to 3 150 - 300 80 - 150
3-1/16 to 6 100 - 200 60 - 120
  1. Values = Revolutions Per Minute (RPM)
Carbide Tipped Annular Cutter
View
Size Depth of Cut Shank Type Item # Availability Price Quantity UOM
1/2 1 3/8 3/4" Weldon Shank DANC1/2-0150CT In Stock $86.65492/EA EA
9/16 1 3/8 3/4" Weldon Shank DANC9/16-0150CT In Stock $88.29612/EA EA
5/8 1 3/8 3/4" Weldon Shank DANC5/8-0150CT In Stock $84.7973/EA EA
11/16 1 3/8 3/4" Weldon Shank DANC11/16-0150CT In Stock $88.16294/EA EA
3/4 1 3/8 3/4" Weldon Shank DANC3/4-0150CT In Stock $87.00745/EA EA
13/16 1 3/8 3/4" Weldon Shank DANC13/16-0150CT In Stock $84.72385/EA EA
7/8 1 3/8 3/4" Weldon Shank DANC7/8-0150CT In Stock $89.70287/EA EA
15/16 1 3/8 3/4" Weldon Shank DANC15/16-0150CT In Stock $89.13278/EA EA
1 1 3/8 3/4" Weldon Shank DANC1-0150CT In Stock $87.722/EA EA
1 1/16 1 3/8 3/4" Weldon Shank DANC1 1/16-0150CT In Stock $88.52778/EA EA
1 1/8 1 3/8 3/4" Weldon Shank DANC1 1/8-0150CT In Stock $89.3772/EA EA
1 3/16 1 3/8 3/4" Weldon Shank DANC1 3/16-0150CT In Stock $92.9338/EA EA
1 1/4 1 3/8 3/4" Weldon Shank DANC1 1/4-0150CT In Stock $102.3345/EA EA
1 5/16 1 3/8 3/4" Weldon Shank DANC1 5/16-0150CT In Stock $103.39993/EA EA
1 3/8 1 3/8 3/4" Weldon Shank DANC1 3/8-0150CT In Stock $105.87208/EA EA
1 7/16 1 3/8 3/4" Weldon Shank DANC1 7/16-0150CT In Stock $109.3067/EA EA
1 1/2 1 3/8 3/4" Weldon Shank DANC1 1/2-0150CT In Stock $112.59694/EA EA
1/2 2 3/4" Weldon Shank DANC1/2-0200CT In Stock $101.66569/EA EA
9/16 2 3/4" Weldon Shank DANC9/16-0200CT In Stock $102.26792/EA EA
5/8 2 3/4" Weldon Shank DANC5/8-0200CT In Stock $99.27927/EA EA
11/16 2 3/4" Weldon Shank DANC11/16-0200CT In Stock $103.44693/EA EA
3/4 2 3/4" Weldon Shank DANC3/4-0200CT In Stock $99.9906/EA EA
13/16 2 3/4" Weldon Shank DANC13/16-0200CT In Stock $103.25499/EA EA
7/8 2 3/4" Weldon Shank DANC7/8-0200CT In Stock $99.32237/EA EA
15/16 2 3/4" Weldon Shank DANC15/16-0200CT In Stock $97.69683/EA EA
1 2 3/4" Weldon Shank DANC1-0200CT In Stock $105.91069/EA EA
1 1/16 2 3/4" Weldon Shank DANC1 1/16-0200CT In Stock $104.18331/EA EA
1 1/8 2 3/4" Weldon Shank DANC1 1/8-0200CT In Stock $110.23894/EA EA
1 3/16 2 3/4" Weldon Shank DANC1 3/16-0200CT In Stock $116.65939/EA EA
1 1/4 2 3/4" Weldon Shank DANC1 1/4-0200CT In Stock $113.56052/EA EA
1 5/16 2 3/4" Weldon Shank DANC1 5/16-0200CT In Stock $110.61944/EA EA
1 3/8 2 3/4" Weldon Shank DANC1 3/8-0200CT In Stock $120.46063/EA EA
1 7/16 2 3/4" Weldon Shank DANC1 7/16-0200CT In Stock $119.6553/EA EA
1 1/2 2 3/4" Weldon Shank DANC1 1/2-0200CT In Stock $119.18331/EA EA
1 9/16 2 3/4" Weldon Shank DANC1 9/16-0200CT In Stock $135.86369/EA EA
1 5/8 2 3/4" Weldon Shank DANC1 5/8-0200CT In Stock $137.59499/EA EA
1 11/16 2 3/4" Weldon Shank DANC1 11/16-0200CT In Stock $136.28672/EA EA
1 3/4 2 3/4" Weldon Shank DANC1 3/4-0200CT In Stock $136.63337/EA EA
1 13/16 2 3/4" Weldon Shank DANC1 13/16-0200CT In Stock $152.22092/EA EA
1 7/8 2 3/4" Weldon Shank DANC1 7/8-0200CT In Stock $152.15041/EA EA
1 15/16 2 3/4" Weldon Shank DANC1 15/16-0200CT In Stock $152.29142/EA EA
2 2 3/4" Weldon Shank DANC2-0200CT In Stock $185.96475/EA EA
2 1/16 2 3/4" Weldon Shank DANC2 1/16-0200CT 6-8 Working Days $351.97415/EA EA
2 1/8 2 3/4" Weldon Shank DANC2 1/8-0200CT 6-8 Working Days $259.20094/EA EA
2 1/4 2 3/4" Weldon Shank DANC2 1/4-0200CT In Stock $273.51351/EA EA
2 3/8 2 1 1/4" Weldon Shank DANC2 3/8-0200CT In Stock $286.3298/EA EA
2 1/2 2 1 1/4" Weldon Shank DANC2 1/2-0200CT In Stock $297.57932/EA EA
2 5/8 2 1 1/4" Weldon Shank DANC2 5/8-0200CT In Stock $311.58637/EA EA
2 3/4 2 1 1/4" Weldon Shank DANC2 3/4-0200CT In Stock $331.69605/EA EA
3 2 1 1/4" Weldon Shank DANC3-0200CT In Stock $308.21387/EA EA
3/4 3 3/4" Weldon Shank DANC3/4-0300CT In Stock $138.55072/EA EA
13/16 3 3/4" Weldon Shank DANC13/16-0300CT In Stock $113.47239/EA EA
7/8 3 3/4" Weldon Shank DANC7/8-0300CT In Stock $114.79436/EA EA
15/16 3 3/4" Weldon Shank DANC15/16-0300CT In Stock $111.87309/EA EA
1 3 3/4" Weldon Shank DANC1-0300CT In Stock $111.93553/EA EA
1 1/16 3 3/4" Weldon Shank DANC1 1/16-0300CT In Stock $123.68978/EA EA
1 1/8 3 3/4" Weldon Shank DANC1 1/8-0300CT In Stock $123.78378/EA EA
1 3/16 3 3/4" Weldon Shank DANC1 3/16-0300CT In Stock $124.88249/EA EA
1 1/4 3 3/4" Weldon Shank DANC1 1/4-0300CT In Stock $161.79788/EA EA
1 3/8 3 3/4" Weldon Shank DANC1 3/8-0300CT In Stock $161.79083/EA EA
1 1/2 3 3/4" Weldon Shank DANC1 1/2-0300CT In Stock $170.12926/EA EA
1 5/8 3 3/4" Weldon Shank DANC1 5/8-0300CT In Stock $217.86134/EA EA
1 3/4 3 3/4" Weldon Shank DANC1 3/4-0300CT In Stock $203.36075/EA EA
2 3 3/4" Weldon Shank DANC2-0300CT In Stock $257.79083/EA EA
2 1/16 3 3/4" Weldon Shank DANC2 1/16-0300CT 6-8 Working Days $333.3725/EA EA
2 1/4 3 3/4" Weldon Shank DANC2 1/4-0300CT 6-8 Working Days $228.56639/EA EA
2 3/8 3 1 1/4" Weldon Shank DANC2 3/8-0300CT 6-8 Working Days $160.35253/EA EA
2 1/2 3 1 1/4" Weldon Shank DANC2 1/2-0300CT In Stock $401.06933/EA EA
2 5/8 3 1 1/4" Weldon Shank DANC2 5/8-0300CT 6-8 Working Days $475.62867/EA EA
2 3/4 3 1 1/4" Weldon Shank DANC2 3/4-0300CT 6-8 Working Days $511.05758/EA EA
3 3 1 1/4" Weldon Shank DANC3-0300CT In Stock $557.50881/EA EA
