Home > Cutting Tools > Hole Cutters > CT5 3/16" Depth Carbide Tipped Hole Cutter

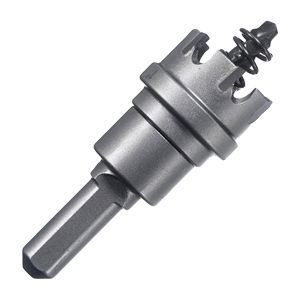

CT5 3/16" Depth Carbide Tipped Hole Cutter
Choose Favorites List

CT5 3/16" Depth Carbide Tipped Hole Cutter

CT5 3/16" Depth Carbide Tipped Hole Cutter

Carbide tipped hole cutters are used to cut holes in metal and other materials. The CT5 hole cutter will cut through thin metals, fiberglass and plastics up to 3/16" thick. It's one piece construction, ejector spring and safety collar stop make this the perfect portable tool for electricians, plumbers, mechanics and contractors. Diameters 9/16" through 1" have a 3/8" (10mm) shank.

Operating GuidelinesCarbide Tipped Hole Cutter - 3/16" Depth

1. Start cutting with pilot drill to center location of the hole

2. When pilot drill is close to breaking through material, ease up on feed pressure - this will minimize the impact of the carbide teeth when they meet the material being drilled and prevent tool breakage

3. Drill large diameter hole using correct speeds and feeds

USE THESE CUTTERS IN ROTARY MODE ONLY - IMPACT MODE WILL DAMAGE CUTTER







Speed Recommendations (RPM)Carbide Tipped Hole Cutter - 3/16" Depth

SIZE STEEL STAINLESS
STEEL
9/16 to 13/16 700 - 1000 300 - 700
7/8 to 1 3/16 500 - 800 200 - 450
1 1/4 to 1 9/16 300 - 600 175 - 315
1 5/8 to 2 200 - 500 120 - 225
2 1/16 to 2 3/8 200 - 400 95 - 195
2 7/16 to 3 150 - 300 80 - 150
3 1/16 to 5 100 - 200 60 - 120

Dimensional SpecificationsCarbide Tipped Hole Cutter - 3/16" Depth

Carbide Tipped Hole Cutter - 3/16" Depth dimensions
Part# Diameter Cutting
Depth		 Shank
DCTC9/16-CT5 9/16" 3/16" 3/8"
DCTC5/8-CT5 5/8" 3/16" 3/8"
DCTC11/16-CT5 11/16" 3/16" 3/8"
DCTC3/4-CT5 3/4" 3/16" 3/8"
DCTC13/16-CT5 13/16" 3/16" 3/8"
DCTC7/8-CT5 7/8" 3/16" 3/8"
DCTC15/16-CT5 15/16" 3/16" 3/8"
DCTC1-CT5 1" 3/16" 3/8"
  1. All dimensions are in inches.
CT5 3/16" Depth Carbide Tipped Hole Cutter
View
Size Depth of Cut Shank Type Item # Availability Price Quantity UOM
9/16 3/16 Straight DCTC9/16-CT5 In Stock $45.46387/EA EA
5/8 3/16 Straight DCTC5/8-CT5 In Stock $42.17822/EA EA
11/16 3/16 Straight DCTC11/16-CT5 In Stock $46.69967/EA EA
3/4 3/16 Straight DCTC3/4-CT5 In Stock $43.0253/EA EA
13/16 3/16 Straight DCTC13/16-CT5 In Stock $47.0187/EA EA
7/8 3/16 Straight DCTC7/8-CT5 In Stock $42.38724/EA EA
15/16 3/16 Straight DCTC15/16-CT5 In Stock $42.47892/EA EA
1 3/16 Straight DCTC1-CT5 In Stock $54.85149/EA EA
