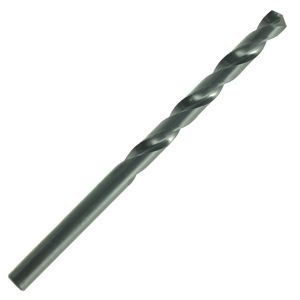

Long Length Drill Bit

High speed steel extension drill bits for use in general drilling applications where extended reach is necessary. 6, 12 or 18 inch length drill bits. Shank diameter equal to drill diameter. Fractional and Number sizes. The 135 degree Split Point eliminates walking at the drill point and reduces thrust. Long length drill bits allow for extended reach while drilling, or extended drilling depths. They are available in varying materials and designs for a wide range of drilling applications. Extension drills have a longer shank and are used to extend reach for hard to access drilling applications. Extra length drills have longer flutes and are meant to allow for deeper drilling, as well as extend reach.

6" LengthsHSS Long Length Drill Bit

SIZE DECIMAL
EQUIVALENT
FLUTE
LENGTH
OVERALL
LENGTH
1/16 0.0625 7/8 6
5/64 0.0781 1 6
3/32 0.0938 1 1/4 6
7/64 0.1094 1 1/2 6
1/8 0.1250 1 5/8 6
9/64 0.1406 1 3/4 6
5/32 0.1563 2 6
11/64 0.1719 2 1/8 6
3/16 0.1875 2 5/16 6
13/64 0.2031 2 7/16 6
7/32 0.2188 2 1/2 6
15/64 0.2344 2 5/8 6
1/4 0.2500 2 3/4 6
17/64 0.2656 2 7/8 6
9/32 0.2813 2 15/16 6
19/64 0.2969 3 1/16 6
5/16 0.3125 3 3/16 6
21/64 0.3281 3 5/16 6
11/32 0.3438 3 7/16 6
23/64 0.3594 3 1/2 6
3/8 0.3750 3 5/8 6
25/64 0.3906 3 3/4 6
13/32 0.4063 3 7/8 6
27/64 0.4219 3 15/16 6
7/16 0.4375 4 1/16 6
29/64 0.4531 4 3/16 6
15/32 0.4688 4 5/16 6
31/64 0.4844 4 3/8 6
1/2 0.5000 4 1/2 6
  1. All dimensions are in inches.

12" LengthsHSS Long Length Drill Bit

SIZE DECIMAL
EQUIVALENT
FLUTE
LENGTH
OVERALL
LENGTH
1/8 0.1250 9 12
9/64 0.1406 9 12
5/32 0.1563 9 12
11/64 0.1719 9 12
3/16 0.1875 9 12
13/64 0.2031 9 12
7/32 0.2188 9 12
15/64 0.2344 9 12
1/4 0.2500 9 12
17/64 0.2656 9 12
9/32 0.2813 9 12
19/64 0.2969 9 12
5/16 0.3125 9 12
21/64 0.3281 9 12
11/32 0.3438 9 12
23/64 0.3594 9 12
3/8 0.3750 9 12
25/64 0.3906 9 12
13/32 0.4063 9 12
27/64 0.4219 9 12
7/16 0.4375 9 12
29/64 0.4531 9 12
15/32 0.4688 9 12
31/64 0.4844 9 12
1/2 0.5000 9 12
33/64 0.5156 9 12
17/32 0.5313 9 12
35/64 0.5469 9 12
9/16 0.5625 9 12
37/64 0.5781 9 12
19/32 0.5938 9 12
39/64 0.6094 9 12
5/8 0.6250 9 12
41/64 0.6406 9 12
21/32 0.6563 9 12
43/64 0.6719 9 12
11/16 0.6875 9 12
45/64 0.7031 9 12
23/32 0.7188 9 12
47/64 0.7344 9 12
3/4 0.7500 9 12
13/16 0.8125 9 12
7/8 0.8750 9 12
15/16 0.9375 9 12
1 1.0000 9 12
  1. All dimensions are in inches.

18" LengthsHSS Long Length Drill Bit

SIZE DECIMAL
EQUIVALENT
FLUTE
LENGTH
OVERALL
LENGTH
1/4 0.2500 13 18
17/64 0.2656 13 18
9/32 0.2813 13 18
19/64 0.2969 13 18
5/16 0.3125 13 18
21/64 0.3281 13 18
11/32 0.3438 13 18
23/64 0.3594 13 18
3/8 0.3750 13 18
25/64 0.3906 13 18
13/32 0.4063 13 18
27/64 0.4219 13 18
7/16 0.4375 13 18
29/64 0.4531 13 18
15/32 0.4688 13 18
31/64 0.4844 13 18
1/2 0.5000 13 18
33/64 0.5156 13 18
17/32 0.5313 13 18
35/64 0.5469 13 18
9/16 0.5625 13 18
37/64 0.5781 13 18
19/32 0.5938 13 18
39/64 0.6094 13 18
5/8 0.6250 13 18
21/32 0.6563 13 18
11/16 0.6875 13 18
23/32 0.7188 13 18
3/4 0.7500 13 18
25/32 0.7813 13 18
13/16 0.8125 13 18
27/32 0.8438 13 18
7/8 0.8750 13 18
29/32 0.9063 13 18
15/16 0.9375 13 18
31/32 0.9688 13 18
1 1.0000 13 18
  1. All dimensions are in inches.
Long Length Drill Bit
View
Size Bit Decimal Overall Length Flute Length Shank Type Item # Availability Price Quantity UOM
1/16 0.0625 6 7/8 Straight DRIL1/16-0600 In Stock $4.81449/EA EA
1/8 0.1250 6 1 5/8 Straight DRIL1/8-0600 In Stock $4.17423/EA EA
1/8 0.1250 12 9 Straight DRIL1/8-1200 2-4 Working Days $35.34988/EA EA
5/32 0.1563 6 2 Straight DRIL5/32-0600 In Stock $3.76588/EA EA
3/16 0.1875 6 2 5/16 Straight DRIL3/16-0600 In Stock $7.59831/EA EA
3/16 0.1875 12 9 1/2" Reduced Shank DRIL3/16-1200 In Stock $42.72837/EA EA
7/32 0.2188 6 2 1/2 Straight DRIL7/32-0600 In Stock $7.19544/EA EA
1/4 0.25 6 2 3/4 Straight DRIL1/4-0600 In Stock $7.37458/EA EA
1/4 0.25 12 9 Straight DRIL1/4-1200 In Stock $41.42359/EA EA
5/16 0.3125 6 3 3/16 Straight DRIL5/16-0600 In Stock $15.72246/EA EA
5/16 0.3125 12 9 1/2" Reduced Shank DRIL5/16-1200 In Stock $33.48829/EA EA
11/32 0.3438 12 9 1/2" Reduced Shank DRIL11/32-1200 In Stock $46.57485/EA EA
3/8 0.3750 6 3 5/8 Straight DRIL3/8-0600 In Stock $18.8978/EA EA
3/8 0.3750 12 9 1/2" Reduced Shank DRIL3/8-1200 In Stock $45.86149/EA EA
7/16 0.4375 6 4 1/16 Straight DRIL7/16-0600 In Stock $24.53547/EA EA
7/16 0.4375 12 9 1/2" Reduced Shank DRIL7/16-1200 In Stock $52.23114/EA EA
1/2 0.5 6 4 1/2 Straight DRIL1/2-0600 In Stock $30.28026/EA EA
1/2 0.5 12 9 Straight DRIL1/2-1200 In Stock $61.76802/EA EA
1/2 0.5 18 13 Straight DRIL1/2-1800 In Stock $126.99184/EA EA
9/16 0.5625 12 9 1/2" Reduced Shank DRIL9/16-1200 In Stock $122.01791/EA EA
9/16 0.5625 18 13 1/2" Reduced Shank DRIL9/16-1800 In Stock $202.66116/EA EA
5/8 0.6250 12 9 1/2" Reduced Shank DRIL5/8-1200 In Stock $139.33884/EA EA
5/8 0.6250 18 13 1/2" Reduced Shank DRIL5/8-1800 In Stock $218.56749/EA EA
11/16 0.6875 12 9 1/2" Reduced Shank DRIL11/16-1200 In Stock $166.98347/EA EA
11/16 0.6875 18 13 1/2" Reduced Shank DRIL11/16-1800 In Stock $275.59229/EA EA
3/4 0.75 12 9 1/2" Reduced Shank DRIL3/4-1200 In Stock $172.61708/EA EA
3/4 0.75 18 13 1/2" Reduced Shank DRIL3/4-1800 In Stock $293.37006/EA EA
13/16 0.8125 12 9 1/2" Reduced Shank DRIL13/16-1200 In Stock $101.70799/EA EA
13/16 0.8125 18 13 1/2" Reduced Shank DRIL13/16-1800 In Stock $351.5978/EA EA
7/8 0.8750 12 9 1/2" Reduced Shank DRIL7/8-1200 In Stock $114.98623/EA EA
7/8 0.8750 18 13 1/2" Reduced Shank DRIL7/8-1800 In Stock $364.95868/EA EA
15/16 0.9375 12 9 1/2" Reduced Shank DRIL15/16-1200 2-4 Working Days $137.16253/EA EA
15/16 0.9375 18 13 1/2" Reduced Shank DRIL15/16-1800 In Stock $310.70248/EA EA
1 - 12 - 1/2" Reduced Shank DRIL1-1200 2-4 Working Days $152.45179/EA EA
1 1.0 18 13 1/2" Reduced Shank DRIL1-1800 In Stock $314.23211/EA EA
