F436 Bevel Washer, Galvanized
Choose Favorites List

F436 Bevel Washer, Galvanized

F436 Bevel Washer, Galvanized

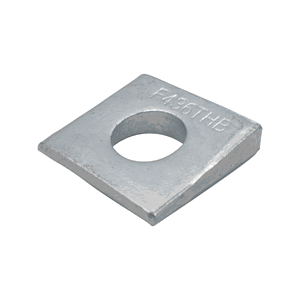

ASTM F436 thru hardened bevel washers are square or rectangular washers with a beveled 1 to 6 ratio surface. For use with American standard beams and channels to compensate for lack of parallelism. F436 bevel washers are designed for structural applications and are commonly used with ASTM F3125 Grade A325 and Grade A490 fasteners. Dimensional, chemical, and mechanical specifications are governed by ASTM F436. Available in hot dip galvanized finish, which provides a corrosion resistant zinc coating.

Governing StandardsF436

ASTM F436/F436M Covers the chemical, mechanical, and dimensional requirements for hardened steel washers for use with fasteners having nominal thread diameters of 1⁄4 through 4 in. and M12 through M100.

Mechanical PropertiesF436

Thru Hardened Steel Per ASTM F436/F436M-16
Rockwell Hardness
Plain   Finish Hot Dip Galvanized
38-45 HRC 26-45 HRC

Chemical PropertiesF436

Per ASTM F436/F436M-16
Grade Material Phosphorus Sulfur
% by weight % by weight
F325 Type 1 Carbon Steel 0.040 0.050

Dimensional SpecificationsF436 Bevel Washer

F436 Bevel Washer dimensions
Per ASTM F436/F436M-16
Size Nominal A Inside
Diameter		 T Slope or
Taper in
Thickness
Side
Dimension		 Mean
Thickness
min max min max
1/2 0.500 1.718 1.782 0.531 0.563 0.097 1:6
5/8 0.625 1.718 1.782 0.688 0.720 0.122 1:6
3/4 0.750 1.718 1.782 0.812 0.844 0.122 1:6
7/8 0.875 1.718 1.782 0.938 0.970 0.136 1:6
1 1.000 1.718 1.782 1.125 1.188 0.136 1:6
  1. All dimensions are in inches.
Washer Dimensional Tolerances
Dimensional Characteristics <1 in.
Nominal Size		 1 in. through
1 1/2 in.
Nominal Size
Flatness: max deviation
from straightedge placed on
cut side shall not exceed (in.)		 0.010 0.015
Concentricity, in.: center of
hole to outside diameter		 0.030 FIRA 0.060 FIRA
Burr shall not project above
immediately adjacent
washer surface more than (in.)		 0.010 0.015
  1. AFull indicator reading.
F436 Bevel Washer, Galvanized
View
Diameter Inside Diameter Width Item # Availability Price Quantity UOM
1/2 0.5313 1 3/4 WBEV050-I In Stock $1.63539/EA EA
5/8 0.6875 1 3/4 WBEV062-I In Stock $1.56284/EA EA
3/4 0.8125 1 3/4 WBEV075-I In Stock $1.86606/EA EA
7/8 0.9375 1 3/4 WBEV087-I In Stock $1.33612/EA EA
1 1.1250 1 3/4 WBEV100-I In Stock $2.44068/EA EA
