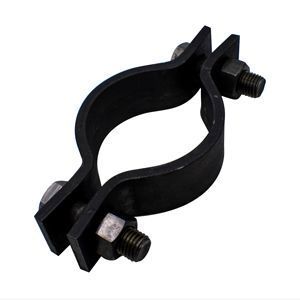

Fig B216 Heavy Pipe Clamp

Product DetailsFigure 216

The figure B216 carbon steel heavy pipe clamp is designed to suspend heavy loads on cold or hot pipe lines where little or no insulation is required. The Fig. B216 heavy pipe clamp is usually used with a Fig. B290 weldless eyenut or Fig. B278 welded eye rod. Pipe sizes 10” and up include a bottom spacer piece.

MATERIAL Carbon Steel
MAX TEMP 750F (399C)
COMPLIANCE Federal Specification A-A-1192A (Type 4), ANSI/MSS SP-58 (Type 4)
NOTE Distance between clamp ears beneath pipe may or may not be equal to upper gap.

Dimensions & LoadsFigure 216

Figure 216 Heavy Pipe ClampFigure 216 Heavy Pipe Clamp

PIPE
SIZE
MAXIMUM LOAD B C D E F H WEIGHT
EACH
650F (343C) 750F (399C)
2 3400 3000 2 1/4 3/4 3 2 1/4 5/8 3 2.1
3 3550 3150 3 1/8 1 4 3 1/8 3/4 4 3.8
4 3550 3150 3 3/4 1 4 7/8 3 3/4 7/8 4 7/8 6.5
5 3550 3150 4 3/8 1 5 1/2 4 3/8 7/8 5 1/2 7.4
6 4900 4350 5 3/8 1 1/8 6 3/4 5 3/8 1 6 3/4 14.0
8 4900 4350 6 3/4 1 1/8 8 1/8 6 3/4 1 8 1/8 16.4
10 6000 5400 7 5/8 1 1/4 9 1/8 7 3/4 1 1/4 9 25.3
12 8700 7750 9 1/4 1 5/8 11 3/8 9 1/2 1 1/2 11 1/8 44.1
14 9150 8150 9 3/4 1 5/8 11 7/8 10 1 1/2 11 5/8 58.8
16 9150 8150 11 1 5/8 12 7/8 11 1 1/2 12 7/8 64.1
18 13800 ---------- 14 1/2 3 17 1/4 14 1/2 2 17 1/4 126
20 15300 ---------- 16 3 18 3/4 16 2 18 3/4 150
24 16300 ---------- 18 1/2 3 1/4 21 1/2 18 1/2 2 1/4 21 1/2 211
28 18000 ---------- 21 1/2 3 1/4 21 1/2 18 1/2 2 1/4 21 1/2 303
30 20500 ---------- 22 1/2 3 1/2 26 22 1/2 2 1/2 26 369
32 23750 ---------- 23 1/4 3 1/2 26 3/4 23 1/4 2 1/2 26 3/4 416
34 25000 ---------- 24 3/4 3 1/2 28 1/4 24 3/4 2 1/2 28 1/4 518
36 28000 ---------- 26 1/2 3 1/2 30 1/4 26 1/2 2 3/4 30 1/4 575
42 35000 ---------- 29 1/2 3 1/2 33 1/4 29 1/2 2 3/4 33 1/4 944
  1. All dimensions are in inches.

Installation DrawingsFigure 216

Figure 216 Installation Drawing

Figure 216 Installation Drawing

Figure 216 Installation Drawing

Figure 216 Installation Drawing

Fig B216 Heavy Pipe Clamp
View
Pipe Diameter Load Rating Weight Item # Availability Price Quantity UOM
3 3550 3.8 FIGB2160300 In Stock $29.62964/EA EA
4 3550 6.5 FIGB2160400 In Stock $32.62194/EA EA
6 4900 14. FIGB2160600 In Stock $63.39934/EA EA
8 4900 16.4 FIGB2160800 In Stock $57.26495/EA EA
10 6000 25.3 FIGB2161000 3-5 Working Days $150.54063/EA EA
12 8700 44.1 FIGB2161200 3-5 Working Days $252.1507/EA EA
14 9150 58.8 FIGB2161400 3-5 Working Days $252.1507/EA EA
16 9150 64.1 FIGB2161600 3-5 Working Days $287.77948/EA EA
18 13800 126. FIGB2161800 3-5 Working Days $711.68702/EA EA
20 15300 150. FIGB2162000 In Stock $974.989/EA EA
24 16300 211. FIGB2162400 3-5 Working Days $1,054.0899/EA EA
