Fig B300 Elongated Clevis Hanger
Choose Favorites List

Fig B300 Elongated Clevis Hanger

Fig B300 Elongated Clevis Hanger

Product DetailsFigure 300

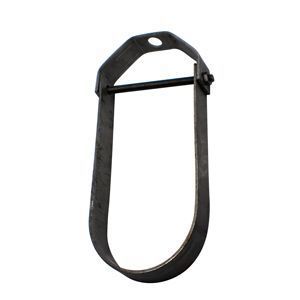

The figure B300 carbon steel elongated clevis hanger is designed for the suspension of insulated, stationary, pipe lines. It will accommodate 2 inches (51mm) of insulation for up to 1-1/2” (40mm) pipe, and 4 inches (102mm) of insulation for pipe 2” (50mm) and larger. The lower load nut (not furnished) adjusts the pipe line to the proper elevation while the top load nut (not furnished), prevents loosening due to vibration, must be installed, and tightened securely, to assure proper hanger performance.

MATERIAL Carbon Steel
MAX TEMP 650F (343C)
COMPLIANCE Federal Specification A-A-1192-A (Type 1),ANSI/MSS SP-58 (Type 1)

Dimensions & LoadsFigure 300

Figure 300 Elongated Clevis Hanger

PIPE
SIZE		 MAX
LOAD		 A B C E F WEIGHT
EACH
1/2 730 3/8 3 3/4 4 1/4 3 1/2 5/8 0.66
3/4 730 3/8 4 1/4 4 7/8 3 7/8 5/8 0.70
1 730 3/8 5 1/8 5 3/4 4 3/4 1 5/8 0.74
1 1/4 730 3/8 5 3/8 6 1/8 4 7/8 1 5/8 0.78
1 1/2 730 3/8 5 1/2 6 3/8 5 1 1/2 0.81
2 730 3/8 7 5/8 8 3/4 7 1/8 1 5/8 0.88
2 1/2 1350 1/2 7 7/8 9 1/4 7 1/4 1 1/8 1.83
3 1350 1/2 8 1/8 9 7/8 7 1/2 1 1/8 1.97
3 1/2 1350 1/2 8 3/8 10 3/8 7 3/4 1 1/4 2.06
4 1430 5/8 9 5/8 11 7/8 8 7/8 1 3/4 2.57
5 1430 5/8 10 3/8 13 1/8 9 5/8 1 7/8 3.00
6 1940 3/4 10 7/8 14 1/8 10 1 5/8 4.05
8 2000 7/8 12 5/8 16 7/8 11 5/8 2 1/8 6.00
10 3600 7/8 14 1/8 19 1/2 12 1/8 2 3/8 10.1
12 3800 7/8 15 3/4 22 1/8 14 5/8 2 5/8 12.9
  1. All dimensions are in inches.
Fig B300 Elongated Clevis Hanger
View
Pipe Diameter Rod Size Load Rating Weight Item # Availability Price Quantity UOM
3/4 3/8 730 0.7 FIGB3000075 3-5 Working Days $5.27628/EA EA
1 3/8 730 0.740 FIGB3000100 3-5 Working Days $5.33182/EA EA
1 1/4 3/8 730 0.780 FIGB3000125 3-5 Working Days $5.56304/EA EA
1 1/2 3/8 730 0.810 FIGB3000150 In Stock $5.9626/EA EA
2 3/8 730 0.880 FIGB3000200 In Stock $7.08471/EA EA
2 1/2 1/2 1350 1.830 FIGB3000250 3-5 Working Days $8.21989/EA EA
3 1/2 1350 1.970 FIGB3000300 3-5 Working Days $8.96968/EA EA
3 1/2 1/2 1350 2.060 FIGB3000350 3-5 Working Days $10.51091/EA EA
4 5/8 1430 2.570 FIGB3000400 In Stock $16.83168/EA EA
5 5/8 1430 3. FIGB3000500 3-5 Working Days $14.99575/EA EA
6 3/4 1940 4.050 FIGB3000600 3-5 Working Days $19.38339/EA EA
8 7/8 2000 6. FIGB3000800 3-5 Working Days $31.96316/EA EA
10 7/8 3600 10.1 FIGB3001000 3-5 Working Days $47.2366/EA EA
12 7/8 3800 12.9 FIGB3001200 3-5 Working Days $52.98497/EA EA
