Fig G14 Adjustable Side Beam Clamp, Galvanized

Product DetailsFigure 14

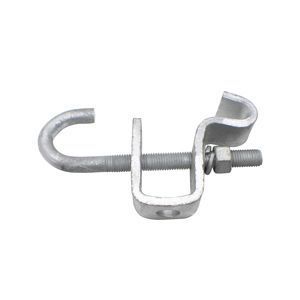

The figure G14 hot dipped galvanized adjustable side beam clamp is designed to attach to the bottom of flanged beams. After installation, the unit is locked into position with a hex nut and a lock washer.

MATERIAL Hot Dipped Galvanized Carbon Steel
COMPLIANCE Federal Specification A-A-1192 (Type 27), ANSI / MSS SP-58 (Type 27)

Dimensions & LoadsFigure 14

Figure 14 Adjustable Side Beam Clamp

ROD
SIZE A
MAX
LOAD
FLANGE WIDTH B C WEIGHT
EACH
MIN MAX
3/8 300 3 1/2 8 2 3/4 1 1/4 0.96
1/2 700 3 1/2 8 2 3/4 1 1/4 1.42
5/8 1000 3 1/2 8 2 3/4 1 1/4 1.86
3/4 1300 6 8 3 3/4 1 1/2 4.22
7/8 1400 6 10 3 3/4 1 1/2 5.56
1 1500 7 14 3 3/4 1 1/2 7.74
  1. All dimensions are in inches.
Fig G14 Adjustable Side Beam Clamp, Galvanized
View
Rod Size Beam Width Load Rating Weight Item # Availability Price Quantity UOM
3/8 3.5 - 8 300 0.965 FIGG14 0037 In Stock $12.78878/EA EA
1/2 3.5 - 8 700 1.427 FIGG14 0050 In Stock $17.88779/EA EA
5/8 3.5 - 8 1000 1.869 FIGG14 0062 In Stock $17.82326/EA EA
3/4 6 - 8 1300 4.241 FIGG14 0075 In Stock $42.87129/EA EA
7/8 6 -10 1400 5.588 FIGG14 0087 3-5 Working Days $150.97374/EA EA
1 7 - 14 1500 7.779 FIGG14 0100 3-5 Working Days $221.58581/EA EA
