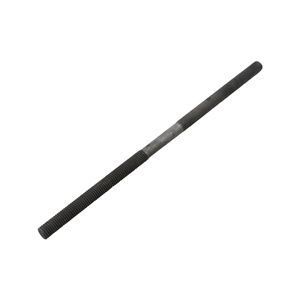

Fig G253 Left X Right Threaded Rod, Galvanized
Choose Favorites List

Fig G253 Left X Right Threaded Rod, Galvanized

Fig G253 Left X Right Threaded Rod, Galvanized

Product DetailsFigure 253

The figure G253 hot dipped galvanized machine threaded rod is used to suspend a pipe hanger from a beam or structural attachment, usually in conjunction with a Fig G230 Turnbuckle on the left hand threaded end.

MATERIAL Hot Dipped Galvanized Carbon Steel
MAX TEMP 450F (232C)
COMPLIANCE ANSI/MSS SP-58

Dimensions & LoadsFigure 253

Figure 253 Left X Right Threaded Rod

A 3/8 1/2 5/8 3/4 7/8 1 1 1/4 1 1/2 1 3/4
THREAD LENGTH (TL) 5 5 5 5 5 5 5 5 5
LOAD AT 650F (343C) 730 1350 2160 3230 4480 5900 9500 13800 18600
LOAD AT 750F (399C) 572 1057 1692 2530 3508 4620 7440 10807 14566
A 2 2 1/4 2 1/2 2 3/4 3 3 1/4 3 1/2 3 3/4 4
THREAD LENGTH (TL) 5 5 5 5 5 5 5 5 5
LOAD AT 650F (343C) 24600 32300 39800 49400 60100 71900 84700 98500 113400
LOAD AT 750F (399C) 19265 25295 31169 38687 47066 56307 66331 77139 88807
  1. All dimensions are in inches.

Installation DrawingsFigure 253

Figure 253 Installation Drawing

Figure 253 Installation Drawing

Fig G253 Left X Right Threaded Rod, Galvanized
View
Rod Size Thread Pitch Length Load Rating Weight Item # Availability Price Quantity UOM
3/8 - 12 730 0.302 FIGG2530037 In Stock $22.70458/EA EA
1/2 - 12 1350 0.543 FIGG2530050 In Stock $23.61622/EA EA
5/8 - 12 2160 0.854 FIGG2530062 In Stock $9.19545/EA EA
3/4 - 12 3230 1.246 FIGG2530075 In Stock $10.88669/EA EA
7/8 - 12 4480 1.719 FIGG2530087 In Stock $12.32856/EA EA
1 - 12 5900 2.312 FIGG2530100 In Stock $35.42354/EA EA
1 1/8 - 12 7400 2.864 FIGG2530112 In Stock $20.38504/EA EA
1 1/4 - 12 9500 3.377 FIGG2530125 In Stock $22.7356/EA EA
1 1/2 - 12 13800 5.226 FIGG2530150 In Stock $30.93509/EA EA
