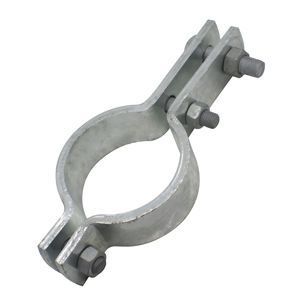

Fig G295 Three Bolt Pipe Clamp, Galvanized

Product DetailsFigure 295

The figure G295 hot dipped galvanized carbon steel double bolt pipe clamp is designed for hot, insulated pipe lines. Typically, the clamp is attached by a Fig. G278 welded eye rod or a Fig. G290 weldless eyenut.

MATERIAL Hot Dipped Galvanized Carbon Steel
MAX TEMP 450F (232C)
COMPLIANCE Federal Specification A-A-1191A (Type 3), ANSI/MSS SP-58 (Type 3)

Dimensions & LoadsFigure 295

Figure 295 Three Bolt Pipe ClampFigure 295 Three Bolt Pipe Clamp

PIPE SIZE MAXIMUM LOAD B C D TAKE OUT E F H WEIGHT EA
650F (343C) 750F (399C)
1/2 950 845 1 5/8 2 7/8 2 1/4 3/8 1 5/8 0.61
3/4 950 845 1 1/8 5/8 3 1/4 2 1/2 3/8 1 3/4 0.66
1 950 845 1 1/2 5/8 3 1/4 2 1/2 3/8 2 1/8 0.69
1 1/4 950 845 1 1/2 3/4 3 5/8 2 7/8 3/8 2 1/4 0.75
1 1/2 1545 1380 1 3/4 1 4 7/8 4 1/8 5/8 2 3/8 2.14
2 1545 1380 2 1/8 1 5 7/8 5 1/8 5/8 2 3/4 2.43
2 1/2 1545 1380 2 1/4 1 1/8 6 1/8 5 3/8 5/8 3 2.92
3 1545 1380 2 3/4 1 1/8 6 5/8 6 5/8 3 3/8 3.19
4 2500 2230 3 1/2 1 7 5/8 6 1/2 3/4 4 5/8 7.12
5 2500 2230 4 1 8 1/8 7 3/4 5 1/8 7.96
6 2865 2555 4 3/4 1 1/4 9 5/8 8 1/4 7/8 6 1/8 11.9
8 2865 2555 5 3/4 1 1/4 10 5/8 9 1/4 7/8 7 1/8 13.6
10 3240 2890 6 7/8 1 1/4 12 10 1/2 1 8 1/4 21.3
12 3240 2890 8 3/8 1 1/2 13 11 1/2 1 9 7/8 23.7
14 4300 3835 9 1/8 2 14 3/8 12 3/4 1 1/4 10 3/4 38.8
16 4300 3835 10 1/8 2 15 5/8 14 1 1/4 11 3/4 42.9
18 4300 3835 11 5/8 2 16 3/4 15 1/8 1 1/4 13 1/4 46.4
20 4500 4015 12 3/8 2 18 16 1/8 1 3/8 14 1/4 58.7
24 5490 4900 14 3/4 2 19 7/8 17 7/8 1 1/2 16 3/8 89.3
30 7500 6690 18 1/2 1 1/2 26 3/8 23 3/8 1 1/2 21 141
36 10500 9360 22 1/2 3 32 1/4 28 3/4 1 3/4 26 246
  1. All dimensions are in inches.

Installation DrawingsFigure 295

Figure 295 Installation Drawing

Figure 295 Installation Drawing

Figure 295 Installation Drawing

Figure 295 Installation Drawing

Fig G295 Three Bolt Pipe Clamp, Galvanized
View
Pipe Diameter Load Rating Weight Item # Availability Price Quantity UOM
1/2 950 0.613 FIGG2950050 In Stock $6.17633/EA EA
3/4 950 0.663 FIGG2950075 In Stock $18.07261/EA EA
1 950 0.693 FIGG2950100 In Stock $20.15157/EA EA
1 1/4 950 0.754 FIGG2950125 In Stock $12.36937/EA EA
1 1/2 1545 2.151 FIGG2950150 In Stock $17.26513/EA EA
2 1545 2.442 FIGG2950200 In Stock $19.02356/EA EA
2 1/2 1545 2.935 FIGG2950250 In Stock $18.91364/EA EA
3 1545 3.206 FIGG2950300 In Stock $20.14521/EA EA
4 2500 7.156 FIGG2950400 In Stock $40.96077/EA EA
5 2500 8. FIGG2950500 In Stock $40.91969/EA EA
6 2865 11.960 FIGG2950600 In Stock $73.17564/EA EA
8 2865 13.668 FIGG2950800 In Stock $90.64906/EA EA
10 3240 21.407 FIGG2951000 In Stock $112.72827/EA EA
12 3240 23.819 FIGG2951200 In Stock $127.2754/EA EA
14 4300 38.994 FIGG2951400 In Stock $335.81958/EA EA
16 4300 43.115 FIGG2951600 In Stock $355.51155/EA EA
18 4300 46.632 FIGG2951800 3-5 Working Days $353.33333/EA EA
20 4500 58.994 FIGG2952000 In Stock $456.18262/EA EA
24 5490 89.747 FIGG2952400 In Stock $561.48515/EA EA
