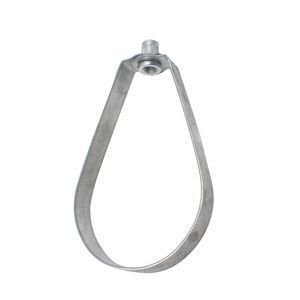

Fig G69 Adjustable Swivel Hanger, Galvanized
Choose Favorites List

Fig G69 Adjustable Swivel Hanger, Galvanized

Fig G69 Adjustable Swivel Hanger, Galvanized

Product DetailsFigure 69

The figure G69 electro-galvanized carbon steel adjustable swivel ring is designed for the support of non-insulated static pipe lines. The swivel nut is knurled to provide a gripping surface when adjusting the pipe elevation.

MATERIAL Electro-Galvanized Carbon Steel
COMPLIANCE Federal Specification A-A-1192A Type 10, MSS SP-69 Type 10, Underwriters Laboratory listed, and Factory Mutual approved (3⁄4" through 8").
NOTE Threads are countersunk so that they cannot become burred or damaged. Captured swivel nut in the 1/2″ through 6″ sizes. The capture is permanent in the bottom of the band, allowing the hanger to be opened during installation if desired, but not allowing the nut to fall completely out.

Dimensions & LoadsFigure 69

Figure 69 Adjustable Swivel Hanger

PIPE
SIZE		 MAX
LOAD		 A B D E WEIGHT
EACH
1/2 300 3/8 2 3/4 3 1/16 1 7/16 0.09
3/4 300 3/8 2 1/2 3 1/16 1 1/8 0.10
1 300 3/8 2 1/2 3 3/16 1 0.10
1 1/4 300 3/8 2 13/16 3 9/16 1 1/16 0.10
1 1/2 300 3/8 3 1/8 3 7/8 1 1/16 0.11
2 300 3/8 3 5/16 4 3/8 1 1/8 0.12
2 1/2 600 1/2 3 11/16 5 1/8 1 1/4 0.32
3 600 1/2 4 5 7/8 1 1/8 0.35
3 1/2 600 1/2 4 5/16 6 5/8 1 1/2 0.39
4 1000 5/8 4 15/16 7 1/8 1 1/4 0.43
5 1000 5/8 5 5/8 8 1/2 1 3/8 0.65
6 1250 3/4 6 11/16 10 1/8 2 1.09
8 1800 7/8 8 5/16 12 7/8 2 5/8 1.24
  1. All dimensions are in inches.

Installation DrawingsFigure 69

Figure 69 Installation Drawing

Figure 69 Installation Drawing

Figure 69 Installation Drawing

Figure 690 Installation Drawing

Fig G69 Adjustable Swivel Hanger, Galvanized
View
Pipe Diameter Rod Size Load Rating Weight Item # Availability Price Quantity UOM
1/2 3/8 300 0.090 FIGG69 0050 3-5 Working Days $0.61606/EA EA
3/4 3/8 300 0.101 FIGG69 0075 In Stock $0.7554/EA EA
1 3/8 300 0.101 FIGG69 0100 In Stock $0.85516/EA EA
1 1/4 3/8 300 0.101 FIGG69 0125 In Stock $0.78438/EA EA
1 1/2 3/8 300 0.111 FIGG69 0150 In Stock $0.72607/EA EA
2 3/8 300 0.121 FIGG69 0200 In Stock $0.82651/EA EA
3 1/2 600 0.352 FIGG69 0300 In Stock $1.90491/EA EA
4 5/8 1000 0.432 FIGG69 0400 In Stock $3.52183/EA EA
5 5/8 1000 0.653 FIGG69 0500 3-5 Working Days $3.78438/EA EA
6 3/4 1250 1.095 FIGG69 0600 3-5 Working Days $4.22442/EA EA
8 7/8 1800 1.246 FIGG69 0800 3-5 Working Days $5.65457/EA EA
