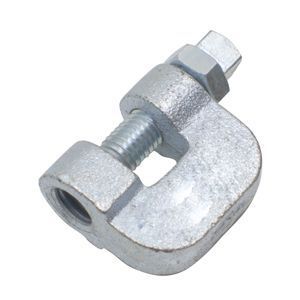

Fig G86 C-Clamp with Lock Nut, Galvanized

Product DetailsFigure 86

The figure G86 electro-galvanized malleable iron c-clamp with set screw and locknut is designed to attach mechanically to the bottom flange of a steel beam and may require a Fig. G89 retaining clip to prevent loosening due to vibration after installation.

MATERIAL Electro-Galvanized Malleable Iron with Hardened Steel Cup Point Set Screw
COMPLIANCE Federal Specification A-A-1192A (Type 23) ANSI/MSS SP-58 (Type 23)
NOTE Install in accordance with ANSI / MSS SP-58 set screw torque values. Malleable body assures uniform quality and strength and full thread engagement. Hardened steel cup point set screw for securing to beam flange. Ribbed design of clamp provides added strength.

Dimensions & LoadsFigure 86

Figure 86 C-Clamp with Lock Nut

ROD
SIZE A
MAX
LOAD
PIPE SIZES C D E F WEIGHT
EACH
3/8 400 1/2   to 2 1 3/4 1 3/4 5/8 3/4 0.33
1/2 400 2 1/2 to 3 1/2 1 3/4 1 3/4 5/8 3/4 0.39
5/8 440 4   to 5 2 2 3/4 3/4 0.46
3/4 500 6 2 2 3/4 3/4 0.52
  1. All dimensions are in inches.

Installation DrawingsFigure 86

Figure 86 Installation Drawing

Fig G86 C-Clamp with Lock Nut, Galvanized
View
Rod Size Load Rating Weight Item # Availability Price Quantity UOM
3/8 400 0.332 FIGG86 0037 In Stock $3.0484/EA EA
1/2 400 0.392 FIGG86 0050 In Stock $6.15932/EA EA
5/8 440 0.462 FIGG86 0062 In Stock $6.77118/EA EA
3/4 500 0.523 FIGG86 0075 In Stock $3.71837/EA EA
