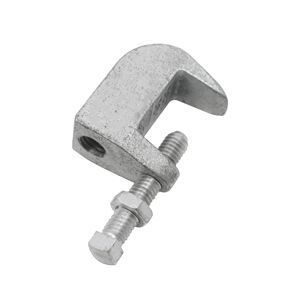

Fig G93 Wide Mouth C-Clamp, Galvanized
Choose Favorites List

Fig G93 Wide Mouth C-Clamp, Galvanized

Product DetailsFigure 93

The figure G93 electro-galvanized wide throat c-type clamp is designed for roof installations with bar joist type construction as well as to be attached mechanically to the top or bottom flange of steel beams. A locking nut is provided and when properly tightened prevents loosening due to vibration. The full body tapping feature for the rod allows for extra adjustment after installation.

MATERIAL Electro-Galvanized Malleable Iron with Hardened Steel Cup Point Set Screw
COMPLIANCE Federal Specification A-A-1192A (Type 19 and 23), ANSI/MSS SP-58 (Type 19 and 23)
NOTE Install in accordance with ANSI / MSS SP-58 set screw torque values.

Dimensions & LoadsFigure 93

Figure 93 Clevis Hanger

ROD
SIZE A
MAX
LOAD
MAX
PIPE SIZE
B C D E F WEIGHT
EACH
3/8 400 4 1 5/8 1 7/8 1 1/16 1 1/4 1/2 0.37
1/2 500 4 1 5/8 1 7/8 1 1/16 1 1/4 1/2 0.35
5/8 850 5 2 1/4 2 5/16 1 3/8 1 1/4 3/4 0.49
3/4 900 6 2 3/8 2 3/8 1 3/8 1 1/4 3/4 0.87
  1. All dimensions are in inches.

Installation DrawingsFigure 93

Figure 93 Installation Drawing

Figure 93 Installation Drawing

Figure 93 Installation Drawing

Narrow Results
Fig G93 Wide Mouth C-Clamp, Galvanized
View
Rod Size Load Rating Weight Item # Availability Price Quantity UOM
3/8 400 0.372 FIGG93 0037 In Stock $4.30825/EA EA
1/2 500 0.352 FIGG93 0050 In Stock $4.83661/EA EA
