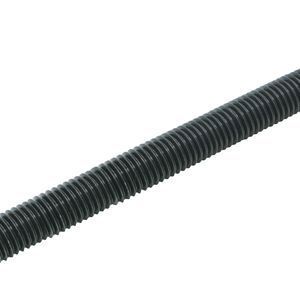

F1554 Grade 105 All Thread Rod, Domestic

ASTM F1554 Grade 105 all thread rod is manufactured from heat treated alloy steel, quenched and tempered. All thread rod listed below is melted and manufactured in the USA where specified domestic. Dimensional specifications are governed by ASME B18.31.3. Inch series fasteners meeting ASTM F1554 Grade 105 specifications are typically used for anchoring structural supports to concrete foundations. They are embedded in concrete and have a threaded portion which projects from the concrete. The embedded portion of the anchor bolt creates resistance to prevent the anchor from pulling out of the concrete when a load is applied. F1554 Grade 105 all thread may be dual certified ASTM A193 Grade B7 due to their properties being similar.

Governing StandardsF1554 Grade 105

ASTM F1554 Covers straight, bent, headed, and headless anchor bolts (also known as anchor rods) made of carbon, medium carbon boron, alloy, or high-strength low alloy steel.
ASME B18.31.3 Covers the general and dimensional data for inch series threaded rods.
ASME B1.1 UNC & UNF Class 2A Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads.

Mechanical PropertiesF1554 Grade 105

Alloy, heat treated, high strength 105 ksi yield steel Per ASTM F1554-15
Grade
105
Tensile
Strength
Yield Strength,
0.2% offset
Elongation
in 8 in. (1)
Elongation
in 2 in. (1)
Reduction
of Area
ksi Min ksi Min % Min % Min %
125-150 105 12 15 45
  1. 1. Elongation in 8 in. applies to bars. Elongation in 2 in. applies to machined specimens.

Chemical PropertiesF1554 Grade 105

Per ASTM F1554-15
Grade
105
Phosphorus Sulfur Copper
% by weight % by weight % by weight
0.04 max 0.05 max 0.20 min
F1554 Grade 105 All Thread Rod, Domestic
View
Diameter Thread Pitch Length Origin Item # Availability Price Quantity UOM
1/2 13 12 FT Domestic RGB70500000-U In Stock $3.08435/FT FT
5/8 11 12 FT Domestic RGB70620000-U In Stock $2.89193/FT FT
3/4 10 12 FT Domestic RGB70750000-U In Stock $3.9825/FT FT
7/8 9 12 FT Domestic RGB70870000-U 5-7 Working Days $4.72679/FT FT
1 8 12 FT Domestic RGB71000000-U In Stock $6.94537/FT FT
1 1/8 7 12 FT Domestic RGB71120000C-U In Stock $12.41767/FT FT
1 1/8 8 12 FT Domestic RGB71120000-U In Stock $6.97948/FT FT
1 1/4 7 12 FT Domestic RGB71250000C-U 5-7 Working Days $9.12259/FT FT
1 1/4 8 12 FT Domestic RGB71250000-U In Stock $10.73698/FT FT
1 3/8 6 12 FT Domestic RGB71370000C-U In Stock $9.7581/FT FT
1 3/8 8 12 FT Domestic RGB71370000-U In Stock $10.97259/FT FT
1 1/2 6 12 FT Domestic RGB71500000C-U 5-7 Working Days $13.99344/FT FT
1 1/2 8 12 FT Domestic RGB71500000-U In Stock $14.73465/FT FT
1 5/8 5.5 12 FT Domestic RGB71620000C-U In Stock $29.28967/FT FT
1 5/8 8 12 FT Domestic RGB71620000-U In Stock $15.81404/FT FT
1 3/4 5 12 FT Domestic RGB71750000C-U 5-7 Working Days $15.23165/FT FT
1 3/4 8 12 FT Domestic RGB71750000-U In Stock $19.22776/FT FT
1 7/8 5 12 FT Domestic RGB71870000C-U In Stock $12.25912/FT FT
1 7/8 8 12 FT Domestic RGB71870000-U In Stock $20.89174/FT FT
2 8 12 FT Domestic RGB72000000-U In Stock $27.92743/FT FT
2 1/4 8 12 FT Domestic RGB72250000-U In Stock $35.51443/FT FT
2 1/2 8 12 FT Domestic RGB72500000-U In Stock $40.18165/FT FT
2 3/4 8 12 FT Domestic RGB72750000-U In Stock $54.06048/FT FT
3 8 12 FT Domestic RGB73000000-U 5-7 Working Days $65.00615/FT FT
