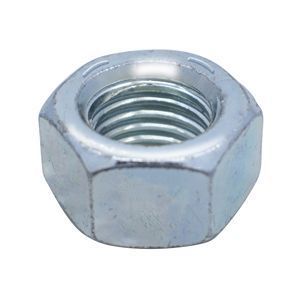

Grade 5 Hex Nut, Plated

SAE J995 Grade 5 hex nuts are medium strength nuts manufactured from quenched and tempered medium carbon steel. Grade 5 hex nuts are available in diameters from 1/4" through 1 1/2" inclusive. Dimensional specifications are governed by ASME B18.2.2. Grade markings include two circumferential lines located 120 degrees apart and the manufacturer's identification mark. Grade 5 hex nuts are commonly used on Grade 5 bolts. Available in zinc plated finish. Zinc plating sacrifices itself, corroding before the base material, offering added corrosion resistance.

Products
Governing Standards
Mechanical Properties
Chemical Properties
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsGrade 5

Per ASME B18.2.2-2015
Nominal Diameter		UNC	UNF	F			G		H
				Width Across Flats			Width Across Corners		Thickness
				Basic	Max	Min	Max	Min	Basic	Max	Min
1/4	0.2500	20	28	7/16	0.4380	0.4280	0.5050	0.4880	7/32	0.2260	0.2120
5/16	0.3125	18	24	1/2	0.5000	0.4890	0.5770	0.5570	17/64	0.2730	0.2580
3/8	0.3750	16	24	9/16	0.5630	0.5510	0.6500	0.6280	21/64	0.3370	0.3200
7/16	0.4375	14	20	11/16	0.6880	0.6750	0.7940	0.7680	3/8	0.3850	0.3650
1/2	0.5000	13	20	3/4	0.7500	0.7300	0.8660	0.8400	7/16	0.4480	0.4270
9/16	0.5625	12	18	7/8	0.8750	0.8610	1.0100	0.9820	31/64	0.4960	0.4730
5/8	0.6250	11	18	15/16	0.9380	0.9220	1.0830	1.0510	35/64	0.5590	0.5350
3/4	0.7500	10	16	1 1/8	1.1250	1.0880	1.2990	1.2400	41/64	0.6650	0.6170
7/8	0.8750	9	14	1 5/16	1.3120	1.2690	1.5160	1.4470	3/4	0.7760	0.7240
1	1.0000	8	14	1 1/2	1.5000	1.4500	1.7320	1.6530	55/64	0.8870	0.8310
1 1/8	1.1250	7	12	1 11/16	1.6880	1.6310	1.9490	1.8590	31/32	0.9990	0.9390
1 1/4	1.2500	7	12	1 7/8	1.8750	1.8120	2.1650	2.0660	1 1/16	1.0940	1.0300
1 3/8	1.3750	6	12	2 1/16	2.0620	1.9940	2.3820	2.2730	1 11/16	1.2060	1.3800
1 1/2	1.5000	6	12	2 1/4	2.2500	2.1750	2.5980	2.4800	1 9/32	1.3170	1.2450

All dimensions are in inches.

Grade 5 Hex Nut, Plated

of 1

Sort By

View

Diameter Width Across Flats Height of Nut Item # Availability Price Quantity UOM

1/4

7/16

0.2188

NF5P0250000

In Stock

$0.04018/EA

See Quantity Discounts

1/4-20 J995 GRADE 5 HEX NUT, PLATED

$0.04018/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.04018/ EA
1370	$0.03763/ EA
5450	$0.03355/ EA
24490	$0.0221/ EA

5/16

1/2

0.2656

NF5P0310000

In Stock

$0.05783/EA

See Quantity Discounts

5/16-18 J995 GRADE 5 HEX NUT, PLATED

$0.05783/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.05783/ EA
910	$0.05417/ EA
3640	$0.04824/ EA
16370	$0.03197/ EA

3/8

9/16

0.3281

NF5P0370000

In Stock

$0.06653/EA

See Quantity Discounts

3/8-16 J995 GRADE 5 HEX NUT, PLATED

$0.06653/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.06653/ EA
630	$0.06247/ EA
2500	$0.05586/ EA
11250	$0.03698/ EA

7/16

11/16

0.3750

NF5P0430000

In Stock

$0.15707/EA

See Quantity Discounts

7/16-14 J995 GRADE 5 HEX NUT, PLATED

$0.15707/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.15707/ EA
540	$0.14734/ EA
2160	$0.13076/ EA
9680	$0.08774/ EA

1/2

3/4

0.4375

NF5P0500000

In Stock

$0.14443/EA

See Quantity Discounts

1/2-13 J995 GRADE 5 HEX NUT, PLATED

$0.14443/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.14443/ EA
270	$0.13558/ EA
1070	$0.1202/ EA
4800	$0.08099/ EA

9/16

7/8

0.4844

NF5P0560000

In Stock

$0.74316/EA

See Quantity Discounts

9/16-12 J995 GRADE 5 HEX NUT, PLATED

$0.74316/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.74316/ EA
180	$0.69762/ EA
690	$0.61847/ EA
3090	$0.41671/ EA

5/8

15/16

0.5469

NF5P0620000

In Stock

$0.38119/EA

See Quantity Discounts

5/8-11 J995 GRADE 5 HEX NUT, PLATED

$0.38119/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.38119/ EA
140	$0.35812/ EA
550	$0.31697/ EA
2460	$0.21534/ EA

3/4

1 1/8

0.6406

NF5P0750000

In Stock

$0.60295/EA

See Quantity Discounts

3/4-10 J995 GRADE 5 HEX NUT, PLATED

$0.60295/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.60295/ EA
90	$0.56683/ EA
340	$0.50127/ EA
1520	$0.34251/ EA

7/8

1 5/16

0.7500

NF5P0870000

In Stock

$1.27212/EA

See Quantity Discounts

7/8-9 J995 GRADE 5 HEX NUT, PLATED

$1.27212/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$1.27212/ EA
60	$1.19667/ EA
220	$1.05717/ EA
950	$0.7277/ EA

1 1/2

0.8594

NF5P1000000

In Stock

$1.19906/EA

See Quantity Discounts

1-8 J995 GRADE 5 HEX NUT, PLATED

$1.19906/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$1.19906/ EA
40	$1.12881/ EA
150	$0.99639/ EA
640	$0.68929/ EA

1 1/8

11/16

0.9688

NF5P1120000

In Stock

$2.25097/EA

See Quantity Discounts

1 1/8-7 J995 GRADE 5 HEX NUT, PLATED

$2.25097/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$2.25097/ EA
25	$2.12125/ EA
100	$1.87172/ EA
500	$1.30634/ EA

1 1/4

1 7/8

1.0625

NF5P1250000

In Stock

$3.39886/EA

See Quantity Discounts

1 1/4-7 J995 GRADE 5 HEX NUT, PLATED

$3.39886/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$3.39886/ EA
25	$3.20298/ EA
80	$2.82621/ EA
500	$1.9725/ EA

SAE J995	Covers the mechanical and material requirements for inch series fasteners used in automotive and related industries in diameters through 1-1/2″.
ASME B18.2.2	Covers the complete general and dimensional data for the various types of inch series square and hex nuts, including machine screw nuts and coupling nuts.
ASME B1.1 UNC & UNF Class 2B	Specifies the thread form, series, class, allowance, tolerance, and designation for unified screw threads.

Medium Carbon Steel	Per SAE J995 2017-07
Diameter	Proof Load Stress (1)	Core Hardness
Diameter	psi	Rockwell
1/4 thru 1" UNC & 8UN	120,000	C32 Max
1/4 thru 1" UNF, 12UN and Finer	109,000	C32 Max
Over 1 thru 1 1/2" UNC & 8UN	105,000	C32 Max
Over 1 thru 1 1/2" UNF, 12UN and Finer	94,000	C32 Max

Per SAE J995 2017-07
Grade	Material	Carbon	Manganese	Phosphorus	Sulfur
Grade	Material	% by weight	% by weight	% by weight	% by weight
5	Medium Carbon Steel	0.55 max	0.30 min	0.05 max (1)(2)	0.15 max (2)(3)
