A194 Grade 8M Stainless Steel Heavy Hex Nut

Choose Favorites List

Zoom In Zoom Out Enlarge

Grade 8M SS Heavy Hex Nut

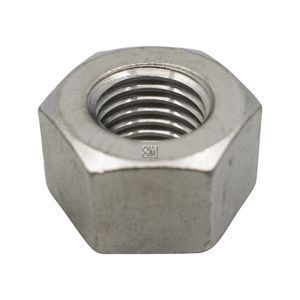

ASTM A194 Grade 8M heavy hex nuts are manufactured from AISI 316 grade stainless steel and tested to meet ASTM A194 Grade 8M. Dimensional specifications are governed by ASME B18.2.2. Grade markings for A194 Grade 8M heavy hex nuts consists of the number/letter combination of 8M. Grade 8M stainless steel heavy hex nuts are intended for use in high-pressure and/or high-temperature service with ASTM A193 and A320 bolting of similar material, such as B8M and B8M Class 2. Heavy hex nuts provide increased bearing surface area over finished nuts.

Products
Governing Standards
Mechanical Properties
Chemical Properties
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsGrade 8M Stainless Steel

Per ASME B18.2.2-2015
Nominal Diameter		UNC	UN8	F			G		H
				Width Across Flats			Width Across Corners		Thickness
				Basic	Max	Min	Max	Min	Basic	Max	Min
1/4	0.250	20		1/2	0.500	0.488	0.577	0.556	15/64	0.250	0.218
5/16	0.313	18		9/16	0.562	0.546	0.650	0.220	19/64	0.314	0.280
3/8	0.375	16		11/16	0.688	0.669	0.794	0.763	23/64	0.377	0.341
7/16	0.438	14		3/4	0.750	0.728	0.866	0.830	27/64	0.441	0.403
1/2	0.500	13		7/8	0.875	0.850	1.010	0.990	31/64	0.504	0.464
9/16	0.563	12		15/16	0.938	0.909	1.083	1.037	35/64	0.568	0.526
5/8	0.625	11		1 1/16	1.062	1.031	1.227	1.175	39/64	0.631	0.587
3/4	0.750	10		1 1/4	0.250	1.212	1.443	1.382	47/64	0.758	0.710
7/8	0.875	9		1 7/16	1.438	1.394	1.660	1.589	55/64	0.885	0.833
1	1.000	8		1 5/8	1.625	1.575	1.876	1.796	63/64	1.012	0.956
1 1/8	1.125	7	8	1 13/16	1.812	1.756	2.093	2.002	1 7/64	1.139	1.079
1 1/4	1.250	7	8	2	2.000	1.380	2.309	2.209	1 7/32	1.251	1.187
1 3/8	1.375	6	8	2 3/16	2.188	2.119	2.526	2.416	1 11/32	1.378	1.310
1 1/2	1.500	6	8	2 3/8	2.375	2.300	2.742	2.622	1 15/32	1.505	1.433
1 5/8	1.625	5 1/2	8	2 9/16	2.562	2.481	2.959	2.828	1 19/32	1.632	1.556
1 3/4	1.750	5	8	2 3/4	2.750	2.662	3.175	3.035	1 23/32	1.759	1.679
1 7/8	1.875	5	8	2 15/16	2.938	2.844	3.392	3.242	1 27/32	1.886	1.802
2	2.000	4 1/2	8	3 1/8	3.125	3.025	3.608	3.449	1 31/32	2.013	1.925
2 1/4	2.250	4 1/2	8	3 1/2	3.500	3.388	4.041	3.862	2 13/64	2.251	2.155
2 1/2	2.500	4	8	3 7/8	3.875	3.750	4.474	4.275	2 29/64	2.505	2.401
2 3/4	2.750	4	8	4 1/4	4.250	4.112	4.907	4.688	2 45/64	2.759	2.647
3	3.000	4	8	4 5/8	4.625	4.475	5.340	5.102	2 61/64	3.013	2.893
3 1/4	3.250	4	8	5	5.000	4.838	5.774	5.515	3 3/16	3.252	3.124
3 1/2	3.500	4	8	5 3/8	5.375	5.200	6.207	5.928	3 7/16	3.506	3.370
3 3/4	3.750	4	8	5 3/4	5.750	5.562	5.562	6.341	3 11/16	3.670	3.616
4	4.000	4	8	6 1/8	6.125	5.925	5.925	6.755	3 15/16	4.014	3.862

All dimensions are in inches.
