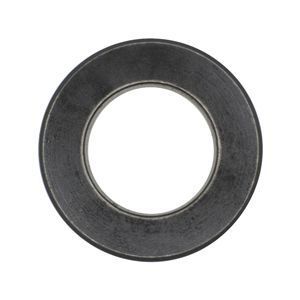

H-13 Tool Steel Belleville Washers

Belleville washers are unique, conical shaped washers recommended for use in problematic or critical bolting applications. Their conical shape affords a high spring rate over a short deflection to retain the proper bolting stress in a variety of conditions. The loss of a sound bolted connection can lead to fugitive emissions, cause equipment failure, or catastrophic events. Belleville washers can eliminate bolted joint failures due to a variety of causes:

High-temperature bolt yield
Differential thermal expansion
Packing or gasket relaxation or creep
Vibration
Thermal cycling
High cycle applications

H-13 Tool Steel is a versatile chromium molybdenum alloy that resists thermal fatigue cracking which occurs due to cyclic heating and cooling. H-13 Bellevilles are a common, economical washer commonly used in conjunction with ASTM A193 Grade B7 and B16 flange bolting.

Products
Mechanical Properties
Chemical Properties
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsH-13 Tool Steel Belleville Washer

H-13 Tool Steel Belleville Washer dimensions

STS Part Number	Diameter	Belleville Type	Raw Material	ID	OD	T	H	h	Load Rating	Load Rating lbs or N
STS Part Number	Diameter	Belleville Type	Raw Material	ID	OD	Thickness	Height	Deflection	Load Rating	Load Rating lbs or N
WBEL050F45	1/2	Flange	H-13 Steel	0.5150	1.0110	0.1410	0.1530	0.0120	6367	lbs
WBEL050F60	1/2	Flange	H-13 Steel	0.5150	1.0110	0.1630	0.1730	0.0100	8490	lbs
WBEL062F30	5/8	Flange	H-13 Steel	0.6440	1.1480	0.1420	0.1570	0.0150	6780	lbs
WBEL062F45	5/8	Flange	H-13 Steel	0.6440	1.1480	0.1730	0.1850	0.0120	10170	lbs
WBEL062F60	5/8	Flange	H-13 Steel	0.6440	1.1480	0.2000	0.2110	0.0110	13560	lbs
WBEL075F30	3/4	Flange	H-13 Steel	0.7730	1.3700	0.1730	0.1900	0.0170	10020	lbs
WBEL075F45	3/4	Flange	H-13 Steel	0.7730	1.3700	0.2110	0.2250	0.0140	15030	lbs
WBEL075F60	3/4	Flange	H-13 Steel	0.7730	1.3700	0.2430	0.2560	0.0130	20040	lbs
WBEL087F30	7/8	Flange	H-13 Steel	0.9010	1.5900	0.2040	0.2240	0.0200	13860	lbs
WBEL087F45	7/8	Flange	H-13 Steel	0.9010	1.5900	0.2480	0.2650	0.0170	20790	lbs
WBEL087F60	7/8	Flange	H-13 Steel	0.9010	1.5900	0.2850	0.3000	0.0150	27720	lbs
WBEL100F30	1	Flange	H-13 Steel	1.0300	1.8100	0.2330	0.2560	0.0230	18180	lbs
WBEL100F45	1	Flange	H-13 Steel	1.0300	1.8100	0.2830	0.3020	0.0190	27270	lbs
WBEL100F60	1	Flange	H-13 Steel	1.0300	1.8100	0.3260	0.3420	0.0160	36360	lbs
WBEL112F30	1 1/8	Flange	H-13 Steel	1.1550	2.0250	0.2660	0.2910	0.0250	23700	lbs
WBEL112F45	1 1/8	Flange	H-13 Steel	1.1550	2.0250	0.3230	0.3440	0.0210	35550	lbs
WBEL112F60	1 1/8	Flange	H-13 Steel	1.1550	2.0250	0.3720	0.3900	0.0180	47400	lbs
WBEL125F30	1 1/4	Flange	H-13 Steel	1.2810	2.3100	0.3010	0.3300	0.0290	30000	lbs
WBEL125F45	1 1/4	Flange	H-13 Steel	1.2810	2.3100	0.3760	0.4000	0.0240	45000	lbs
WBEL125F60	1 1/4	Flange	H-13 Steel	1.2810	2.3100	0.4220	0.4430	0.0210	60000	lbs
WBEL137F30	1 3/8	Flange	H-13 Steel	1.4060	2.4700	0.3320	0.6200	0.0300	36990	lbs
WBEL137F45	1 3/8	Flange	H-13 Steel	1.4060	2.4700	0.4040	0.4290	0.0250	55485	lbs
WBEL137F60	1 3/8	Flange	H-13 Steel	1.4060	2.4700	0.4650	0.4870	0.0220	73980	lbs
WBEL150F30	1 1/2	Flange	H-13 Steel	1.5310	2.6800	0.3640	0.3960	0.0320	44760	lbs
WBEL150F45	1 1/2	Flange	H-13 Steel	1.5310	2.6800	0.4430	0.4700	0.0270	67140	lbs
WBEL150F60	1 1/2	Flange	H-13 Steel	1.6490	2.9500	0.5600	0.5860	0.0260	106800	lbs
WBEL175F60	1 3/4	Flange	H-13 Steel	1.7740	3.1700	0.6050	0.6330	0.0280	124800	lbs
WBEL187F60	1 7/8	Flange	H-13 Steel	1.8990	3.3890	0.5810	0.6140	0.0330	114475	lbs
WBEL200F60	2	Flange	H-13 Steel	2.0240	3.6000	0.6220	0.6560	0.0340	167000	lbs
WBEL225F60	2 1/4	Flange	H-13 Steel	2.2810	4.0400	0.7040	0.7420	0.0380	169100	lbs
WBELM20-F-6.1-H13	M20	Flange	H-13 Steel	20.5994	36.9570	6.1468	6.4516	0.3048	93141	N
WBELM24-F-5.4-H13	M24	Flange	H-13 Steel	24.8158	43.4086	5.3848	5.9182	0.5334	67120	N
WBELM24-F-6.5-H13	M24	Flange	H-13 Steel	24.8158	43.4086	6.5278	6.9596	0.4318	100680	N
WBELM24-F-7.5-H13	M24	Flange	H-13 Steel	24.8158	43.4086	7.5184	7.8994	0.3810	134241	N
WBELM30-F-8.3-H13	M30	Flange	H-13 Steel	30.8102	53.9242	8.2550	8.7884	0.5334	160929	N
WBELM33-F-10.6-H13	M33	Flange	H-13 Steel	33.5280	59.1820	10.6172	11.1252	0.5080	267681	N
WBELM42-F-14.6-H13	M42	Flange	H-13 Steel	42.8498	74.9300	14.5796	15.2146	0.6350	475936	N
