Hex Head Self Tapping Screw, Plated

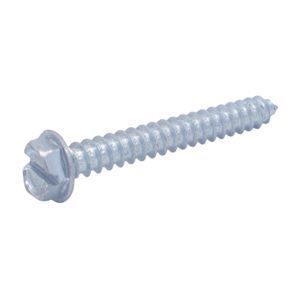

Self-tapping screws are fasteners that have a tapered point allowing the screw to thread itself into a pre-drilled hole, though some softer materials may not require pre-drilling. Type A self-tapping screws have coarse threads suitable for use in thin metal, composites, and wood in many cases. The threads taper down to the point, allowing the screw to form threads into the material as the screw is installed. Type A screws are often referred to as sheet metal screws, though they are not a self-drilling tek screw. The hex washer head is less prone to stripping than some other drive types, and has an attached washer style flange under the head which creates a larger surface connection area. Hex washer head type A self-tapping screws listed here have a zinc plated finish for added corrosion protection.

Dimensional SpecificationsType A Hex Head Self Tapping Screw

Type A Threads for Self Tapping Screws dimensions
ASME B18.6.3-2013
Nominal Size
or Basic Screw
Diameter
Threads
per Inch
D d Drill
Size
Recommended
Hole Diameter
Major
Diameter
Minor
Diameter
Max Min Max Min
#4 0.112 24 0.114 0.110 0.083 0.078 #44 0.0860
#5 0.125 20 0.130 0.126 0.095 0.090 #36 0.1065
#6 0.138 18 0.141 0.136 0.102 0.096 #32 0.1160
#7 0.151 16 0.158 0.152 0.114 0.108 #30 0.1285
#8 0.164 15 0.168 0.162 0.123 0.116 #29 0.1360
#10 0.190 12 0.194 0.188 0.133 0.126 #21 0.1590
#12 0.216 11 0.221 0.215 0.162 0.155 3/16 0.1875
#14 0.242 10 0.254 0.248 0.185 0.178 7/32 0.2165
  1. Tolerance on Length: Up to 1" incl.: +/- 0.03. Over 1": +/- 0.05.
  2. All dimensions are in inches.
Type A Threads for Self Tapping Screws dimensions
ASME B18.6.3-2013
Nominal
Size
A W H F U J T
Width
Across Flats
Width
Across
Corners
Height of
Head
Diameter
of Washer
Thickness
of Washer
Width
of Slot
Depth
of Slot
Max Min Min Max Min Max Min Max Min Max Min Max Min
#4 0.188 0.181 0.202 0.060 0.049 0.243 0.225 0.019 0.011 0.039 0.031 0.036 0.025
#6 0.250 0.244 0.272 0.093 0.080 0.328 0.302 0.025 0.015 0.048 0.039 0.046 0.033
#7 0.250 0.244 0.272 0.093 0.080 0.328 0.302 0.029 0.017 0.080 0.039 0.054 0.040
#8 0.250 0.244 0.272 0.110 0.096 0.348 0.322 0.031 0.019 0.054 0.045 0.066 0.052
#10 0.312 0.305 0.340 0.120 0.105 0.414 0.384 0.031 0.019 0.060 0.050 0.072 0.057
#12 0.312 0.305 0.340 0.155 0.139 0.432 0.398 0.039 0.022 0.067 0.056 0.093 0.077
#14 0.375 0.367 0.409 0.190 0.172 0.520 0.480 0.050 0.030 0.075 0.064 0.101 0.083
  1. *Slot dimensions for 1/2-inch diameter hex washer head tapping screws are independent of ASME B18.6.3.
  2. All dimensions are in inches.
Hex Head Self Tapping Screw, Plated
View
Diameter Thread Pitch Length Item # Availability Price Quantity UOM
#6 18 1/2 THHP 60050 In Stock $0.01434/EA EA
#6 18 5/8 THHP 60062 3-5 Working Days EA
#6 18 3/4 THHP 60075 In Stock $0.02504/EA EA
#6 18 1 THHP 60100 In Stock $0.68104/EA EA
#6 18 1 1/4 THHP 60125 In Stock $0.06852/EA EA
#6 18 1 1/2 THHP 60150 In Stock $0.02427/EA EA
#8 15 3/8 THHP 80037 In Stock $0.02366/EA EA
#8 15 1/2 THHP 80050 In Stock $0.01632/EA EA
#8 15 3/4 THHP 80075 In Stock $0.02211/EA EA
#8 15 1 THHP 80100 In Stock $0.03238/EA EA
#8 15 1 1/4 THHP 80125 In Stock $0.03536/EA EA
#8 15 1 1/2 THHP 80150 In Stock $0.0541/EA EA
#8 15 2 THHP 80200 In Stock $0.11002/EA EA
#8 15 2 1/2 THHP 80250 In Stock $0.08182/EA EA
#8 15 3 THHP 80300 In Stock $0.08636/EA EA
#10 12 1/2 THHP 100050 In Stock $0.02642/EA EA
#10 12 5/8 THHP 100062 In Stock $0.03014/EA EA
#10 12 3/4 THHP 100075 In Stock $0.02815/EA EA
#10 12 1 THHP 100100 In Stock $0.05475/EA EA
#10 12 1 1/4 THHP 100125 In Stock $0.05522/EA EA
#10 12 1 1/2 THHP 100150 In Stock $0.03864/EA EA
#10 12 2 THHP 100200 In Stock $0.05829/EA EA
#10 12 2 1/2 THHP 100250 In Stock $0.06593/EA EA
#10 12 3 THHP 100300 In Stock $0.08519/EA EA
#12 11 1/2 THHP 120050 In Stock $0.03454/EA EA
#12 11 3/4 THHP 120075 In Stock $0.03679/EA EA
#12 11 1 THHP 120100 In Stock $0.05579/EA EA
#12 11 1 1/4 THHP 120125 In Stock $0.06174/EA EA
#12 11 1 1/2 THHP 120150 In Stock $0.07465/EA EA
#12 11 2 THHP 120200 In Stock $0.06904/EA EA
#12 11 2 1/2 THHP 120250 In Stock $0.08359/EA EA
#12 11 3 THHP 120300 In Stock $0.09797/EA EA
#14 10 1/2 THHP 140050 In Stock $0.04737/EA EA
#14 10 5/8 THHP 140062 In Stock $0.10864/EA EA
#14 10 3/4 THHP 140075 In Stock $0.06956/EA EA
#14 10 1 THHP 140100 In Stock $0.07638/EA EA
#14 10 1 1/4 THHP 140125 In Stock $0.08636/EA EA
#14 10 1 1/2 THHP 140150 In Stock $0.18238/EA EA
#14 10 1 3/4 THHP 140175 In Stock $0.15786/EA EA
#14 10 2 THHP 140200 In Stock $0.11792/EA EA
#14 10 2 1/2 THHP 140250 In Stock $0.15695/EA EA
#14 10 3 THHP 140300 In Stock $0.13804/EA EA
