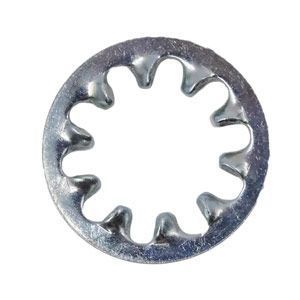

Internal Tooth Lock Washer, Plated

Low carbon internal tooth lock washers are used under bolt heads or nuts to increase the hold of the fastener. Internal tooth lock washers have teeth on the inner dimension of the washer creating a ratchet action by biting into the nut or screw head and the surface it contacts. Dimensional specifications are governed by ASME B18.21.1. Available in zinc plated finish. Zinc plating sacrifices itself, corroding before the base material, offering added corrosion resistance.

Products
Governing Standards
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsInternal Tooth Lock Washer

Per ASME B18.21.1-2009
Size	Nominal	Inside Diameter		Outside Diameter		Mean Section Thickness
Size	Nominal	Max	Min	Max	Min	Max	Min
#2	0.0860	0.0950	0.0890	0.2000	0.1750	0.0160	0.0100
#3	0.0990	0.1090	0.1020	0.2320	0.2150	0.0160	0.0100
#4	0.1120	0.1230	0.1150	0.2700	0.2450	0.0180	0.0120
#5	0.1250	0.1360	0.1290	0.2800	0.2550	0.0200	0.0140
#6	0.1380	0.1500	0.1410	0.2950	0.2750	0.0220	0.0160
#8	0.1640	0.1760	0.1680	0.3400	0.3250	0.0230	0.0180
#10	0.1900	0.2040	0.1950	0.3810	0.3650	0.0240	0.0180
#12	0.2160	0.2310	0.2210	0.4100	0.3940	0.0270	0.0200
1/4	0.2500	0.2670	0.2560	0.4780	0.4600	0.0280	0.0230
5/16	0.3125	0.3320	0.3200	0.6100	0.5940	0.0340	0.0280
3/8	0.3750	0.3980	0.3840	0.6920	0.6700	0.0400	0.0320
7/16	0.4375	0.4640	0.4480	0.7890	0.7400	0.0400	0.0320
1/2	0.5000	0.5300	0.5120	0.9000	0.8670	0.0450	0.0370
9/16	0.5625	0.5960	0.5760	0.9850	0.9570	0.0450	0.0370
5/8	0.6250	0.6630	0.6400	1.0710	1.0450	0.0500	0.0420
3/4	0.7500	0.7950	0.7690	1.2450	1.2200	0.0550	0.0470
7/8	0.8750	0.9270	0.8940	1.4100	1.3640	0.0600	0.0520
1	1.0000	1.0600	1.0190	1.6370	1.5900	0.0670	0.0590

All dimensions are in inches.
