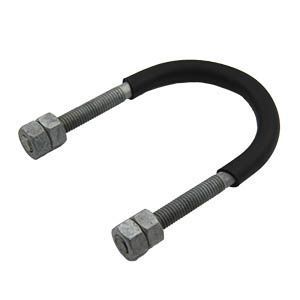

Long Tangent U-Bolt, Neoprene Coated W/Nut

Long tangent u-bolts are bolts bent in the shape of the letter U with machine threads on both ends that nuts can be threaded onto in order to fasten the u-bolt. Long tangent refers to the length of the straight leg portion of the u-bolt which is longer than that of a standard u-bolt. Since u-bolts have primarily been used to support and secure pipe, u-bolts sizes are called out by the size of pipe. In addition to supporting pipe, u-bolts have a wide range of uses such as securing tubing, roundbar, wood or steel posts, and can be embedded into concrete as anchor bolts. U-bolts are designed to be inserted into pre-drilled or punched holes. Made from carbon steel with a hot dip galvanized finish, which provides a primary corrosion resistant zinc coating, then coated with a rubberized coating.

Dimensional SpecificationsU-Bolt

U-Bolt dimensions
Pipe Size Diameter Threads
per Inch
Standard U-Bolts Long Tangent U-Bolts
Number Inside
Length
Inside
Width
Thread
Length
Inside
Length
Inside
Width
Thread
Length
D L C T L C T
1/4 1/4 20 1 1 1/4 9/16 3/4
3/8 1/4 20 2 1 1/4 3/4 5/8
1/4 20 3 2 1/4 3/4 1 1/2
1/2 1/4 20 4 1 3/4 1 1 3 1/4 15/16 2 3/8
5/16 18 10 2 3/16 1 1 3/8
3/8 16 17 2 1/4 1 1 1/4 3 1/4 15/16 2 3/8
3/4 1/4 20 5 2 1 1/8 1 3 5/16 1 1/8 2 3/8
1/4 20 6 2 1/4 1 1/4 1 1/4
5/16 18 101 2 3/16 1 1/8 1
3/8 16 18 2 1/4 1 1/4 1 1/4 3 5/16 1 1/8 2 3/8
1 1/4 20 7 2 3/4 1 1/2 1 3/8 3 7/16 1 3/8 2 3/8
5/16 18 11 2 3/16 1 3/8 1
5/16 18 12 2 3/16 1 1/2 1
3/8 16 19 2 1/2 1 1/2 1 1/4 3 7/16 1 3/8 2 3/8
1 1/4 1/4 20 8 3 1 3/4 1 3/8
5/16 18 13 2 11/16 1 3/4 1 1/8
3/8 16 20 2 3/4 1 3/4 1 1/8 3 3/4 1 11/16 2 1/2
1 1/2 1/4 20 9 3 1/4 2 1 3/8
5/16 18 14 2 11/16 2 1
3/8 16 21 2 5/8 2 1 1/4 4 2 2 1/2
2 1/4 20 902 3 3/16 2 1/2 1
5/16 18 15 3 3/16 2 1/2 1
3/8 16 22 3 1/8 2 1/2 1 1/4 4 1/2 2 7/16 2 1/2
2 1/2 5/16 18 16 3 11/16 3 1
3/8 16 23 3 5/8 3 1 1/4
1/2 13 25 4 1/2 3 1 5/8 5 1/4 2 15/16 3
3 3/8 16 24 4 1/8 3 1/2 1 1/4
1/2 13 26 5 3 1/2 1 1/2 5 13/16 3 9/16 3
3 1/2 1/2 13 27 5 1/2 4 1 1/2 6 5/16 4 1/16 3
4 1/2 13 28 6 4 1/2 1 1/2 6 13/16 4 9/16 3
5 1/2 13 29 7 1/4 5 5/8 2 7 13/16 5 5/8 3
6 1/2 13 30 8 3/8 6 3/4 2 9 1/2 6 3/4 3 3/4
5/8 11   8 3/8 6 3/4 2 9 1/2 6 3/4 3 3/4
8 1/2 13 31 10 3/8 8 3/4 2 11 1/2 8 3/4 3 3/4
5/8 11   10 3/8 8 3/4 2 11 1/2 8 3/4 3 3/4
10 3/4 10         13 13/16 10 7/8 4
12 7/8 9         16 1/16 12 7/8 4 1/8
14 7/8 9         17 5/16 14 1/8 4 1/8
16 7/8 9         19 5/16 16 1/8 4 1/8
18 1 8         21 11/16 18 1/8 4 3/4
20 1 8         23 11/16 20 1/8 4 3/4
24 1 8         27 11/16 24 1/8 4 3/4
28 1 8         31 11/16 28 1/8 4 3/4
30 1 8         33 11/16 30 1/8 4 3/4
36 1 8         39 11/16 36 1/8 4 3/4
  1. All dimensions are in inches.
Long Tangent U-Bolt, Neoprene Coated W/Nut
View
Thread Diameter Thread Pitch Pipe Diameter With Nut? Item # Availability Price Quantity UOM
1/4 20 1/2 With 4 Nuts UBLC0250050N In Stock $3.53835/EA EA
1/4 20 3/4 With 4 Nuts UBLC0250075N In Stock $4.72266/EA EA
1/4 20 1 With 4 Nuts UBLC0250100N In Stock $3.54913/EA EA
3/8 16 1 1/4 With 4 Nuts UBLC0370125N In Stock $4.27943/EA EA
3/8 16 1 1/2 With 4 Nuts UBLC0370150N In Stock $5.17001/EA EA
3/8 16 2 With 4 Nuts UBLC0370200N In Stock $6.31023/EA EA
1/2 13 2 1/2 With 4 Nuts UBLC0500250N In Stock $9.66128/EA EA
1/2 13 3 With 4 Nuts UBLC0500300N In Stock $11.18561/EA EA
1/2 13 3 1/2 With 4 Nuts UBLC0500350N 3-5 Working Days $5.88273/EA EA
1/2 13 4 With 4 Nuts UBLC0500400N In Stock $12.95868/EA EA
1/2 13 5 With 4 Nuts UBLC0500500N In Stock $13.20033/EA EA
5/8 11 6 With 4 Nuts UBLC0620600N In Stock $25.16374/EA EA
5/8 11 8 With 4 Nuts UBLC0620800N In Stock $28.56986/EA EA
3/4 10 10 With 4 Nuts UBLC0751000N In Stock $44.69481/EA EA
7/8 9 12 With 4 Nuts UBLC0871200N In Stock $70.30211/EA EA
7/8 9 14 With 4 Nuts UBLC0871400N In Stock $62.9703/EA EA
7/8 9 16 With 4 Nuts UBLC0871600N In Stock $71.65384/EA EA
1 8 18 With 4 Nuts UBLC1001800N In Stock $105.54455/EA EA
1 8 20 With 4 Nuts UBLC1002000N In Stock $117.01503/EA EA
1 8 24 With 4 Nuts UBLC1002400N In Stock $122.41584/EA EA
1 8 30 With 4 Nuts UBLC1003000N In Stock $152.0752/EA EA
