Malleable Iron Bevel Washer, Galvanized
Choose Favorites List

Malleable Iron Bevel Washer, Galvanized

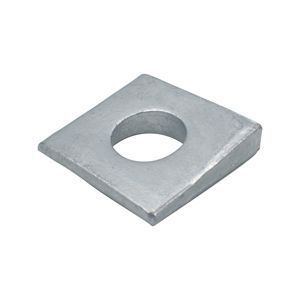

Bevel washers are square or rectangular washers with a beveled 1 to 6 ratio surface. For use with American standard beams and channels in structural applications, to compensate for lack of parallelism.  Available in hot dip galvanized finish, which provides a corrosion resistant zinc coating. For bevel washers to be used with A325 and A490 structural bolts, please see F436 bevel washers.

Dimensional SpecificationsMalleable Iron Bevel Washer

Malleable Iron Bevel Washer dimensions
Size Nominal A B C Slope or
Taper in
Thickness
Side
Dimension
Thickness
3/8 0.375 1.250 0.3438 0.1563 1:6
1/2 0.500 1.250 0.3438 0.1563 1:6
5/8 0.625 1.500 0.4063 0.1563 1:6
3/4 0.750 1.500 0.4688 0.2188 1:6
7/8 0.875 2.000 0.5625 0.2188 1:6
1 1.000 2.000 0.5625 0.2188 1:6
  1. All dimensions are in inches.
Narrow Results
Malleable Iron Bevel Washer, Galvanized
View
Diameter Inside Diameter Width Item # Availability Price Quantity UOM
1/2 0.5625 1 1/4 WBEV050MG-I In Stock $0.28733/EA EA
5/8 0.6875 1 1/2 WBEV062MG-I In Stock $0.77962/EA EA
3/4 0.8125 1 1/2 WBEV075MG-I In Stock $0.69015/EA EA
