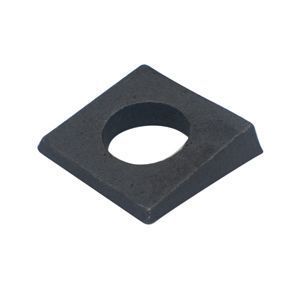

Malleable Iron Bevel Washer
Choose Favorites List

Malleable Iron Bevel Washer

Bevel washers are square or rectangular washers with a beveled 1 to 6 ratio surface. For use with American standard beams and channels in structural applications, to compensate for lack of parallelism. For bevel washers to be used with A325 and A490 structural bolts, please see F436 bevel washers.

Dimensional SpecificationsMalleable Iron Bevel Washer

Malleable Iron Bevel Washer dimensions
Size Nominal A B C Slope or
Taper in
Thickness
Side
Dimension
Thickness
3/8 0.375 1.250 0.3438 0.1563 1:6
1/2 0.500 1.250 0.3438 0.1563 1:6
5/8 0.625 1.500 0.4063 0.1563 1:6
3/4 0.750 1.500 0.4688 0.2188 1:6
7/8 0.875 2.000 0.5625 0.2188 1:6
1 1.000 2.000 0.5625 0.2188 1:6
  1. All dimensions are in inches.
Malleable Iron Bevel Washer
View
Diameter Inside Diameter Width Item # Availability Price Quantity UOM
1/2 0.5625 1 1/4 WBEV050MB-I In Stock $0.31328/EA EA
5/8 0.6875 1 1/2 WBEV062MB-I 3-5 Working Days $1.7389/EA EA
3/4 0.8125 1 1/2 WBEV075MB-I In Stock $0.40125/EA EA
7/8 0.9375 2 WBEV087MB-I In Stock $0.73953/EA EA
1 1.0938 2 WBEV100MB-I In Stock $0.86016/EA EA
