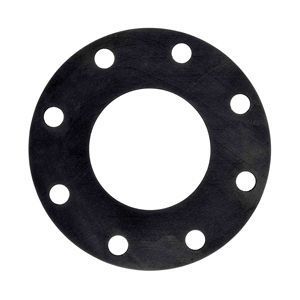

Neoprene Full Face Gasket

Full Face gaskets are a flat sealing element, consisting of an inner and outer diameter, and a specified number of bolt holes, the center of which are evenly spaced around a bolt circle. Full face gaskets are designed to fill the entire space between flat-faced flanges, with bolt holes that match the size and arrangement of the bolt holes in the intended flanges. ASME B16.21 and ASME B16.47 govern the dimensions of full face gaskets for standard and large diameter pipe flanges. Neoprene offers good resistance to oil and petroleum base solvents and excellent resistance to dilute acids. Known by the chemical name chloroprene, 60 durometer neoprene is made from 100% neoprene and is suited for various applications while giving users a gasket material with excellent weathering and ozone resistance.

Products
Governing Standards
Physical Properties
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsNeoprene Full Face Gasket

Per ASME B16.21-2016
		Pipe Diameter
		1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	3 1/2	4	5	6	8	10	12	14	16	18	20	24
Inside Diameter		0.84	1.06	1.31	1.66	1.91	2.38	2.88	3.50	4.00	4.50	5.56	6.62	8.62	10.75	12.75	14.00	16.00	18.00	20.00	24.00
Outside Diameter per Class	150#	3.50	3.88	4.25	4.63	5.00	6.00	7.00	7.50	8.50	9.00	10.00	11.00	13.50	16.00	19.00	21.00	23.50	25.00	27.50	32.00
	300#	3.75	4.62	4.88	5.25	6.12	6.50	7.50	8.25	9.00	10.00	11.00	12.50	15.00	17.50	20.50	23.00	25.50	28.00	30.50	36.00
	600#	3.75	4.62	4.88	5.25	6.12	6.50	7.50	8.25	9.00	10.75	13.00	14.00	16.50	20.00	22.00	23.75	27.00	29.25	32.00	37.00
Bolt Circle Diameter per Class	150#	2.38	2.75	3.13	3.50	3.88	4.75	5.50	6.00	7.00	7.50	8.50	9.50	11.75	14.25	17.00	18.75	21.25	22.75	25.00	29.50
	300#	2.62	3.25	3.50	3.88	4.50	5.00	5.88	6.62	7.25	7.88	9.25	10.62	13.00	15.25	17.75	20.25	22.50	24.75	27.00	32.00
	600#	2.62	3.25	3.50	3.88	4.50	5.00	5.88	6.62	7.25	8.50	10.50	11.50	13.75	17.00	19.25	20.75	23.75	25.75	28.50	33.00
Number of Bolt Holes per Class	150#	4	4	4	4	4	4	4	4	8	8	8	8	8	12	12	12	16	16	20	20
	300#	4	4	4	4	4	8	8	8	8	8	8	12	12	16	16	20	20	24	24	24
	600#	4	4	4	4	4	8	8	8	8	8	8	12	12	16	20	20	20	20	24	24
Bolt Hole Diameter per Class	150#	0.63	0.63	0.63	0.63	0.63	0.75	0.75	0.75	0.75	0.75	0.88	0.88	0.88	1.00	1.00	1.13	1.13	1.25	1.25	1.38
	300#	0.63	0.75	0.75	0.75	0.88	0.75	0.88	0.88	0.88	0.88	0.88	0.88	1.00	1.12	1.25	1.25	1.38	1.38	1.38	1.62
	600#	0.63	0.75	0.75	0.75	0.88	0.75	0.88	0.88	1.00	1.00	1.12	1.12	1.25	1.38	1.38	1.50	1.62	1.75	1.75	2.00

Per ASME B16.47-2017
Series A		Pipe Diameter
Series A		26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
Inside Diameter		26.00	28.00	30.00	32.00	34.00	36.00	38.00	40.00	42.00	44.00	46.00	48.00	50.00	52.00	54.00	56.00	58.00	60.00
Outside Diameter per Class	150#	34.25	36.50	38.75	41.75	43.75	46.00	48.75	50.75	53.00	55.25	57.25	59.50	61.75	64.00	66.25	68.75	71.00	73.00
	300#	38.25	40.75	43.00	45.25	47.50	50.00	46.00	48.75	50.75	53.25	55.75	57.75	60.25	62.25	65.25	67.25	69.25	71.25
	600#	40.00	42.25	44.50	47.00	49.00	51.75	50.00	52.00	55.25	57.25	59.50	62.75	65.75	67.75	70.00	73.00	75.00	78.50
Bolt Circle Diameter per Class	150#	31.75	34.00	36.00	38.50	40.50	42.75	45.25	47.25	49.50	51.75	53.75	56.00	58.25	60.50	62.75	65.00	67.25	69.25
	300#	34.50	37.00	39.25	41.50	43.50	46.00	43.00	45.50	47.50	49.75	52.00	54.00	56.25	58.25	61.00	63.00	65.00	67.00
	600#	36.00	38.00	40.25	42.50	44.50	47.00	45.75	47.75	50.50	52.50	54.75	57.50	60.00	62.00	64.25	66.75	68.75	71.75
Number of Bolt Holes per Class	150#	24	28	28	28	32	32	32	36	36	40	40	44	44	44	44	48	48	52
	300#	28	28	28	28	28	32	32	32	32	32	28	32	32	32	28	28	32	32
	600#	28	28	28	28	28	28	28	32	28	32	32	32	28	32	32	32	32	28
Bolt Hole Diameter per Class	150#	1.38	1.38	1.38	1.63	1.63	1.63	1.63	1.63	1.63	1.63	1.63	1.63	1.88	1.88	1.88	1.88	1.88	1.88
	300#	1.75	1.75	1.88	2.00	2.00	2.12	1.62	1.75	1.75	1.88	2.00	2.00	2.12	2.12	2.38	2.38	2.38	2.38
	600#	2.00	2.12	2.12	2.38	2.38	2.62	2.38	2.38	2.62	2.62	2.62	2.88	3.12	3.12	3.12	3.38	3.38	3.62
Per ASME B16.47-2017
Series B		Pipe Diameter
Series B		26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
Inside Diameter		26.00	28.00	30.00	32.00	34.00	36.00	38.00	40.00	42.00	44.00	46.00	48.00	50.00	52.00	54.00	56.00	58.00	60.00
Outside Diameter per Class	150#	30.94	32.94	34.94	37.06	39.56	41.62	44.25	46.25	48.25	50.25	52.81	54.81	56.81	58.81	61.00	63.00	65.94	67.94
	300#	34.12	36.25	39.00	41.50	43.62	46.12	48.12	50.12	52.50	54.50	57.50	59.50	61.50	63.50	65.88	69.50	71.94	73.94
	600#	35.00	37.50	40.25	42.75	45.75	47.75
Bolt Circle Diameter per Class	150#	29.31	31.31	33.31	35.44	37.69	39.75	42.12	44.12	46.12	48.12	50.56	52.56	54.56	56.56	58.75	60.75	63.44	65.44
	300#	31.62	33.75	36.25	38.50	40.62	42.88	44.88	46.88	49.00	51.00	53.75	55.75	57.75	59.75	62.12	65.00	67.44	69.44
	600#	31.75	34.00	36.50	38.75	41.50	43.50
Number of Bolt Holes per Class	150#	36	40	44	48	40	44	40	44	48	52	40	44	48	52	56	60	48	52
	300#	32	36	36	32	36	32	36	40	36	40	36	40	44	48	48	36	40	40
	600#	28	28	28	28	24	28
Bolt Hole Diameter per Class	150#	0.88	0.88	0.88	0.88	1.00	1.00	1.12	1.12	1.12	1.12	1.25	1.25	1.25	1.25	1.25	1.25	1.38	1.38
	300#	1.38	1.38	1.50	1.62	1.62	1.75	1.75	1.75	1.88	1.88	2.00	2.00	2.00	2.00	2.00	2.38	2.38	2.38
	600#	1.75	1.88	2.00	2.12	2.38	2.38

All dimensions are in inches.

Neoprene Full Face Gasket

of 1

Sort By

Show

View

Pipe Diameter	Flange Rating	Series	Thickness	Item #	Availability	Price	Quantity
1/2	150#	-	1/16	GF100B-1500050	1-3 Working Days	$0.55418/EA	EA	EA
1/2	300#, 400#, 600#	-	1/16	GF100B-3460050	1-3 Working Days	$0.63617/EA	EA	EA
3/4	150#	-	1/16	GF100B-1500075	1-3 Working Days	$0.67929/EA	EA	EA
3/4	300#, 400#, 600#	-	1/16	GF100B-3460075	1-3 Working Days	$0.96769/EA	EA	EA
1	150#	-	1/16	GF100B-1500100	1-3 Working Days	$0.81713/EA	EA	EA
1	300#, 400#, 600#	-	1/16	GF100B-3460100	1-3 Working Days	$1.07513/EA	EA	EA
1 1/4	150#	-	1/16	GF100B-1500125	1-3 Working Days	$0.96769/EA	EA	EA
1 1/4	300#, 400#, 600#	-	1/16	GF100B-3460125	1-3 Working Days	$1.2469/EA	EA	EA
1 1/2	150#	-	1/16	GF100B-1500150	1-3 Working Days	$1.13097/EA	EA	EA
1 1/2	300#, 400#, 600#	-	1/16	GF100B-3460150	1-3 Working Days	$1.69717/EA	EA	EA
2	150#	-	1/16	GF100B-1500200	1-3 Working Days	$1.6286/EA	EA	EA
2	300#, 400#, 600#	-	1/16	GF100B-3460200	1-3 Working Days	$1.91134/EA	EA	EA
2 1/2	150#	-	1/16	GF100B-1500250	1-3 Working Days	$2.21671/EA	EA	EA
3	150#	-	1/16	GF100B-1500300	1-3 Working Days	$1.99051/EA	EA	EA
3	300#, 400#, 600#	-	1/16	GF100B-3460300	1-3 Working Days	$2.5249/EA	EA	EA
4	150#	-	1/16	GF100B-1500400	1-3 Working Days	$2.74827/EA	EA	EA
4	300#	-	1/16	GF100B-3000400	1-3 Working Days	$3.60781/EA	EA	EA
5	150#	-	1/16	GF100B-1500500	1-3 Working Days	$3.12414/EA	EA	EA
6	150#	-	1/16	GF100B-1500600	In Stock	$3.48835/EA	EA	EA
6	300#	-	1/16	GF100B-3000600	1-3 Working Days	$5.08302/EA	EA	EA
8	150#	-	1/16	GF100B-1500800	1-3 Working Days	$4.87944/EA	EA	EA
8	300#	-	1/16	GF100B-3000800	1-3 Working Days	$6.81341/EA	EA	EA
10	150#	-	1/16	GF100B-1501000	1-3 Working Days	$6.35324/EA	EA	EA
10	300#	-	1/16	GF100B-3001000	1-3 Working Days	$8.6265/EA	EA	EA
12	150#	-	1/16	GF100B-1501200	1-3 Working Days	$8.9771/EA	EA	EA
12	300#	-	1/16	GF100B-3001200	1-3 Working Days	$11.65751/EA	EA	EA
14	150#	-	1/16	GF100B-1501400	1-3 Working Days	$11.08354/EA	EA	EA
14	300#	-	1/16	GF100B-3001400	1-3 Working Days	$15.06457/EA	EA	EA
16	150#	-	1/16	GF100B-1501600	1-3 Working Days	$13.40203/EA	EA	EA
16	300#	-	1/16	GF100B-3001600	1-3 Working Days	$17.83545/EA	EA	EA
18	150#	-	1/16	GF100B-1501800	1-3 Working Days	$13.61692/EA	EA	EA
18	300#	-	1/16	GF100B-3001800	1-3 Working Days	$20.80991/EA	EA	EA
20	150#	-	1/16	GF100B-1502000	1-3 Working Days	$16.11637/EA	EA	EA
20	300#	-	1/16	GF100B-3002000	1-3 Working Days	$23.98794/EA	EA	EA
24	150#	-	1/16	GF100B-1502400	1-3 Working Days	$20.26704/EA	EA	EA
24	300#	-	1/16	GF100B-3002400	1-3 Working Days	$32.57203/EA	EA	EA
1/2	150#	-	1/8	GF100B-1500050-1/8	1-3 Working Days	$0.64901/EA	EA	EA
1/2	300#, 400#, 600#	-	1/8	GF100B-3460050-1/8	1-3 Working Days	$0.74504/EA	EA	EA
3/4	150#	-	1/8	GF100B-1500075-1/8	1-3 Working Days	$0.79554/EA	EA	EA
3/4	300#, 400#, 600#	-	1/8	GF100B-3460075-1/8	1-3 Working Days	$1.13329/EA	EA	EA
1	150#	-	1/8	GF100B-1500100-1/8	1-3 Working Days	$0.95696/EA	EA	EA
1	300#, 400#, 600#	-	1/8	GF100B-3460100-1/8	1-3 Working Days	$1.25912/EA	EA	EA
1 1/4	150#	-	1/8	GF100B-1500125-1/8	1-3 Working Days	$1.13329/EA	EA	EA
1 1/4	300#, 400#, 600#	-	1/8	GF100B-3460125-1/8	1-3 Working Days	$1.46028/EA	EA	EA
1 1/2	150#	-	1/8	GF100B-1500150-1/8	1-3 Working Days	$1.32452/EA	EA	EA
1 1/2	300#, 400#, 600#	-	1/8	GF100B-3460150-1/8	1-3 Working Days	$1.9876/EA	EA	EA
2	150#	-	1/8	GF100B-1500200-1/8	In Stock	$1.90731/EA	EA	EA
2	300#, 400#, 600#	-	1/8	GF100B-3460200-1/8	1-3 Working Days	$2.23844/EA	EA	EA
2 1/2	150#	-	1/8	GF100B-1500250-1/8	1-3 Working Days	$2.59606/EA	EA	EA
3	150#	-	1/8	GF100B-1500300-1/8	In Stock	$2.33115/EA	EA	EA
3	300#, 400#, 600#	-	1/8	GF100B-3460300-1/8	1-3 Working Days	$2.95699/EA	EA	EA
4	150#	-	1/8	GF100B-1500400-1/8	1-3 Working Days	$3.21858/EA	EA	EA
4	300#	-	1/8	GF100B-3000400-1/8	1-3 Working Days	$4.22521/EA	EA	EA
5	150#	-	1/8	GF100B-1500500-1/8	1-3 Working Days	$3.65877/EA	EA	EA
6	150#	-	1/8	GF100B-1500600-1/8	1-3 Working Days	$4.08531/EA	EA	EA
6	300#	-	1/8	GF100B-3000600-1/8	In Stock	$5.95288/EA	EA	EA
8	150#	-	1/8	GF100B-1500800-1/8	1-3 Working Days	$5.71447/EA	EA	EA
8	300#	-	1/8	GF100B-3000800-1/8	1-3 Working Days	$7.97939/EA	EA	EA
10	150#	-	1/8	GF100B-1501000-1/8	1-3 Working Days	$7.44048/EA	EA	EA
10	300#	-	1/8	GF100B-3001000-1/8	1-3 Working Days	$10.10276/EA	EA	EA
12	150#	-	1/8	GF100B-1501200-1/8	1-3 Working Days	$10.51336/EA	EA	EA
12	300#	-	1/8	GF100B-3001200-1/8	1-3 Working Days	$13.65247/EA	EA	EA
14	150#	-	1/8	GF100B-1501400-1/8	1-3 Working Days	$12.98028/EA	EA	EA
14	300#	-	1/8	GF100B-3001400-1/8	1-3 Working Days	$17.64258/EA	EA	EA
16	150#	-	1/8	GF100B-1501600-1/8	1-3 Working Days	$15.69554/EA	EA	EA
16	300#	-	1/8	GF100B-3001600-1/8	1-3 Working Days	$20.88765/EA	EA	EA
18	150#	-	1/8	GF100B-1501800-1/8	1-3 Working Days	$15.9472/EA	EA	EA
18	300#	-	1/8	GF100B-3001800-1/8	1-3 Working Days	$24.37113/EA	EA	EA
20	150#	-	1/8	GF100B-1502000-1/8	1-3 Working Days	$18.87438/EA	EA	EA
20	300#	-	1/8	GF100B-3002000-1/8	1-3 Working Days	$28.09302/EA	EA	EA
24	150#	-	1/8	GF100B-1502400-1/8	1-3 Working Days	$23.73536/EA	EA	EA
24	300#	-	1/8	GF100B-3002400-1/8	1-3 Working Days	$38.14612/EA	EA	EA

Typical Physical Properties:
Dimension			1/8"
Hardness (shore A)			65 +/- 5
Density (g/cm3)			1.50
Tensile Strength (mpa)			3.00
Elongation (%)			250
Temperature			-4F to 248F (-20C to 120C)

Neoprene Full Face Gasket

Technical Data

Governing Standards

Governing StandardsNeoprene Full Face Gasket

Physical Properties

Physical PropertiesNeoprene Full Face Gasket

Dimensional Specifications

Dimensional SpecificationsNeoprene Full Face Gasket

Pipe Diameter

Flange Rating

Thickness

Outside Diameter

Inside Diameter

ASME B16.21	Covers types, sizes, materials, dimensions, tolerances, and markings for nonmetallic flat gaskets.
ASME B16.47	Covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges in sizes NPS 26 through NPS 60. Included are flanges with rating class designations 75, 150, 300, 400, 600, and 900 with requirements given in both SI (Metric) and U. S. Customary units, with diameter of bolts and flange bolt hole expressed in inch units.
