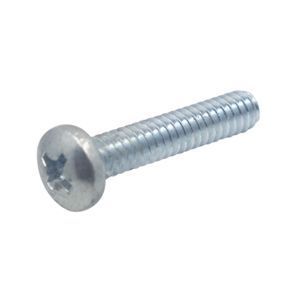

Phillips Pan Head Machine Screw, Plated

Machine screws are uniformly threaded fasteners with a blunt end that are used with a threaded nut or threaded into a tapped hole. The phillips drive pan head offers a smooth, rounded, relatively low-profile head design with a phillips drive. These fasteners are available in a zinc plated finish.

Products
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsType 2A Threads for Machine Screws

Type 2A Threads for Machine Screws dimensions

ASME B1.1 (2008)
Nominal Size	Threads per Inch	Allowance	Major Diameter		Pitch Diameter			Stress Area in²	Tensile Strength, ^a lb., min. (STEEL screws only)
			Major Diameter		Pitch Diameter
			Max	Min	Max	Min	Tolerance
#0	80	0.0005	0.0595	0.0563	0.0514	0.0496	0.001762	0.00180	-
#1	64	0.0006	0.0724	0.0686	0.0623	0.0603	0.001970	0.00263	-
#1	72	0.0006	0.0724	0.0689	0.0634	0.0615	0.001899	0.00278	-
#2	56	0.0006	0.0854	0.0813	0.0738	0.0717	0.002127	0.00370	-
#2	64	0.0006	0.0854	0.0816	0.0753	0.0733	0.002040	0.00394	-
#3	48	0.0007	0.0983	0.0938	0.0848	0.0825	0.002302	0.00487	-
#3	56	0.0007	0.0983	0.0942	0.0867	0.0845	0.002191	0.00523	-
#4	40	0.0008	0.1112	0.1061	0.0950	0.0925	0.002507	0.00604	360
#4	48	0.0007	0.1113	0.1068	0.0978	0.0954	0.002361	0.00661	396
#5	40	0.0008	0.1242	0.1191	0.1080	0.1054	0.002562	0.00796	470
#5	44	0.0007	0.1243	0.1195	0.1095	0.1070	0.002484	0.00830	498
#6	32	0.0008	0.1372	0.1312	0.1169	0.1141	0.002820	0.00909	550
#6	40	0.0008	0.1372	0.1321	0.1210	0.1184	0.002614	0.01015	609
#8	32	0.0009	0.1631	0.1571	0.1428	0.1399	0.002916	0.01400	850
#8	36	0.0008	0.1632	0.1577	0.1452	0.1424	0.002804	0.01474	884
#10	24	0.0010	0.1890	0.1818	0.1619	0.1586	0.003319	0.01750	1050
#10	32	0.0009	0.1891	0.1831	0.1688	0.1658	0.003004	0.02000	1200
#12	24	0.0010	0.2150	0.2078	0.1879	0.1845	0.003400	0.02420	1450
#12	28	0.0010	0.2150	0.2085	0.1918	0.1886	0.003224	0.02580	1548
1/4	20	0.0011	0.2489	0.2408	0.2164	0.2127	0.003731	0.03180	1900
1/4	28	0.0010	0.2490	0.2425	0.2258	0.2225	0.003322	0.03640	2200
5/16	18	0.0012	0.3113	0.3026	0.2752	0.2712	0.004041	0.05240	3150
5/16	24	0.0011	0.3114	0.3042	0.2843	0.2806	0.003660	0.05800	3480
3/8	16	0.0013	0.3737	0.3643	0.3331	0.3287	0.004363	0.07750	4650
3/8	24	0.0011	0.3739	0.3667	0.3468	0.3430	0.003804	0.08780	5268
1/2	13	0.0015	0.4985	0.4876	0.4485	0.4435	0.004965	0.14190	8500
1/2	20	0.0013	0.4987	0.4906	0.4662	0.4619	0.004288	0.15990	9594

Tolerance on Length	Nominal Screw Size	Nominal Screw Length
		Up to 1/2 in., incl.	Over 1/2 to 1 in., incl.	Over 1 to 2 in., incl.	Over 2 in.
	0 thru 12	-0.02	-0.03	-0.06	-0.09
L	1/4 thru 3/4	-0.03	-0.03	-0.06	-0.09

^a Tensile strength values are based on 60,000 psi and apply to carbon steel screws and SEMS only. Hex and Hex Washer head machine screws of sufficient length may be wedge tensile tested. Other head styles may be axial tensile tested.
All dimensions are in inches.

Dimensional SpecificationsPhillips Pan Head for Machine Screws

Phillips Pan Head for Machine Screws dimensions

ASME B18.6.3-2013
Nominal Size	A		H1		M	G		Phillips Drive Size
	Head Diameter		Height of Head		Dimensions of Recess
	Head Diameter		Height of Head		Diameter	Recess Penetration Gaging Depth
	Max	Min	Max	Min	Diameter	Max	Min
#0	0.116	0.104	0.044	0.036	0.060	0.032	0.014	0
#2	0.167	0.155	0.062	0.053	0.097	0.052	0.034	1
#3	0.193	0.180	0.071	0.062	0.105	0.061	0.043	1
#4	0.219	0.205	0.080	0.070	0.115	0.071	0.053	1
#5	0.245	0.231	0.089	0.079	0.152	0.072	0.046	2
#6	0.270	0.256	0.097	0.087	0.159	0.080	0.055	2
#8	0.322	0.306	0.115	0.105	0.175	0.097	0.071	2
#10	0.373	0.357	0.133	0.122	0.192	0.011	0.089	2
#12	0.425	0.407	0.151	0.139	0.252	0.124	0.980	3
1/4	0.492	0.473	0.175	0.162	0.274	0.144	0.118	3
5/16	0.615	0.594	0.218	0.203	0.343	0.173	0.149	4
3/8	0.740	0.716	0.261	0.244	0.382	0.213	0.190	4
1/2	0.987	0.958	0.348	0.325	0.428	0.260	0.235	4

All dimensions are in inches.

Phillips Pan Head Machine Screw, Plated

of 1

Sort By

Show

View

Diameter	Thread Pitch	Length	Item #	Availability	Price	Quantity
#4	40	1/4	MPPP 40025	In Stock	$0.07363/EA	EA	EA
#4	40	1/2	MPPP 40050	In Stock	$0.01862/EA	EA	EA
#4	40	3/4	MPPP 40075	In Stock	$0.05606/EA	EA	EA
#4	40	1	MPPP 40100	In Stock	$0.04494/EA	EA	EA
#4	40	1 1/2	MPPP 40150	3-5 Working Days	$0.06508/EA	EA	EA
#6	32	1/4	MPPP 60025	In Stock	$0.01644/EA	EA	EA
#6	32	3/8	MPPP 60037	In Stock	$0.05368/EA	EA	EA
#6	32	1/2	MPPP 60050	In Stock	$0.01853/EA	EA	EA
#6	32	5/8	MPPP 60062	3-5 Working Days	$0.039/EA	EA	EA
#6	32	3/4	MPPP 60075	In Stock	$0.01729/EA	EA	EA
#6	32	1	MPPP 60100	In Stock	$0.02242/EA	EA	EA
#6	32	1 1/4	MPPP 60125	In Stock	$0.03264/EA	EA	EA
#6	32	1 1/2	MPPP 60150	In Stock	$0.02936/EA	EA	EA
#6	32	1 3/4	MPPP 60175	In Stock	$0.04385/EA	EA	EA
#6	32	2	MPPP 60200	In Stock	$0.02998/EA	EA	EA
#6	32	3	MPPP 60300	In Stock	$0.06974/EA	EA	EA
#6	32	3 1/2	MPPP 60350	In Stock	$0.07743/EA	EA	EA
#6	32	4	MPPP 60400	In Stock	$0.12879/EA	EA	EA
#8	32	1/4	MPPP 80025	In Stock	$0.02266/EA	EA	EA
#8	32	3/8	MPPP 80037	In Stock	$0.01639/EA	EA	EA
#8	32	1/2	MPPP 80050	In Stock	$0.02993/EA	EA	EA
#8	32	3/4	MPPP 80075	In Stock	$0.02774/EA	EA	EA
#8	32	1	MPPP 80100	In Stock	$0.03914/EA	EA	EA
#8	32	1 1/4	MPPP 80125	In Stock	$0.14561/EA	EA	EA
#8	32	1 1/2	MPPP 80150	In Stock	$0.05093/EA	EA	EA
#8	32	1 3/4	MPPP 80175	In Stock	$0.06988/EA	EA	EA
#8	32	2	MPPP 80200	In Stock	$0.05017/EA	EA	EA
#8	32	2 1/2	MPPP 80250	In Stock	$0.05986/EA	EA	EA
#8	32	2 3/4	MPPP 80275	In Stock	$0.10779/EA	EA	EA
#8	32	3	MPPP 80300	In Stock	$0.11007/EA	EA	EA
#8	32	3 1/2	MPPP 80350	In Stock	$0.1315/EA	EA	EA
#8	32	4	MPPP 80400	In Stock	$0.17563/EA	EA	EA
#10	24	1/4	MPPP1020025	In Stock	$0.08955/EA	EA	EA
#10	24	3/8	MPPP1020037	In Stock	$0.04751/EA	EA	EA
#10	24	1/2	MPPP1020050	In Stock	$0.05843/EA	EA	EA
#10	24	3/4	MPPP1020075	In Stock	$0.06119/EA	EA	EA
#10	24	1	MPPP1020100	In Stock	$0.05031/EA	EA	EA
#10	24	1 1/4	MPPP1020125	In Stock	$0.13558/EA	EA	EA
#10	24	1 1/2	MPPP1020150	In Stock	$0.08323/EA	EA	EA
#10	24	2	MPPP1020200	In Stock	$0.0848/EA	EA	EA
#10	24	2 1/4	MPPP1020225	3-5 Working Days	$0.1277/EA	EA	EA
#10	24	2 1/2	MPPP1020250	3-5 Working Days	$0.10451/EA	EA	EA
#10	24	2 3/4	MPPP1020275	3-5 Working Days	$0.10451/EA	EA	EA
#10	24	3	MPPP1020300	In Stock	$0.1704/EA	EA	EA
#10	24	3 1/2	MPPP1020350	In Stock	$0.14599/EA	EA	EA
#10	24	4	MPPP1020400	In Stock	$0.30385/EA	EA	EA
#10	32	1/4	MPPP1030025	In Stock	$0.04751/EA	EA	EA
#10	32	3/8	MPPP1030037	In Stock	$0.04575/EA	EA	EA
#10	32	1/2	MPPP1030050	In Stock	$0.04684/EA	EA	EA
#10	32	3/4	MPPP1030075	In Stock	$0.03777/EA	EA	EA
#10	32	1	MPPP1030100	In Stock	$0.04152/EA	EA	EA
#10	32	1 1/4	MPPP1030125	In Stock	$0.05986/EA	EA	EA
#10	32	1 1/2	MPPP1030150	In Stock	$0.0561/EA	EA	EA
#10	32	2	MPPP1030200	3-5 Working Days	$0.18789/EA	EA	EA
#10	32	2 1/2	MPPP1030250	In Stock	$0.13929/EA	EA	EA
#10	32	3	MPPP1030300	In Stock	$0.10394/EA	EA	EA
#10	32	4	MPPP1030400	In Stock	$0.24347/EA	EA	EA
#12	24	3/8	MPPP1220037	In Stock	$0.03948/EA	EA	EA
#12	24	1/2	MPPP1220050	In Stock	$0.03848/EA	EA	EA
#12	24	5/8	MPPP1220062	In Stock	$0.07306/EA	EA	EA
#12	24	3/4	MPPP1220075	In Stock	$0.14029/EA	EA	EA
#12	24	1	MPPP1220100	In Stock	$0.09302/EA	EA	EA
#12	24	1 1/4	MPPP1220125	In Stock	$0.06527/EA	EA	EA
#12	24	1 1/2	MPPP1220150	In Stock	$0.07316/EA	EA	EA
#12	24	1 3/4	MPPP1220175	In Stock	$0.09221/EA	EA	EA
#12	24	2	MPPP1220200	In Stock	$0.08029/EA	EA	EA
#12	24	2 1/2	MPPP1220250	In Stock	$0.12912/EA	EA	EA
#12	24	3	MPPP1220300	In Stock	$0.16879/EA	EA	EA
1/4	20	3/8	MPPP0250037	In Stock	$0.09924/EA	EA	EA
1/4	20	1/2	MPPP0250050	In Stock	$0.10242/EA	EA	EA
1/4	20	3/4	MPPP0250075	In Stock	$0.08741/EA	EA	EA
1/4	20	1	MPPP0250100	In Stock	$0.07791/EA	EA	EA
1/4	20	1 1/4	MPPP0250125	In Stock	$0.07306/EA	EA	EA
1/4	20	1 1/2	MPPP0250150	In Stock	$0.30071/EA	EA	EA
1/4	20	1 3/4	MPPP0250175	In Stock	$0.13696/EA	EA	EA
1/4	20	2	MPPP0250200	In Stock	$0.11777/EA	EA	EA
1/4	20	2 1/4	MPPP0250225	In Stock	$0.12869/EA	EA	EA
1/4	20	2 1/2	MPPP0250250	In Stock	$0.13834/EA	EA	EA
1/4	20	2 3/4	MPPP0250275	In Stock	$0.26893/EA	EA	EA
1/4	20	3	MPPP0250300	In Stock	$0.21401/EA	EA	EA
1/4	20	3 1/2	MPPP0250350	In Stock	$0.22252/EA	EA	EA
1/4	20	4	MPPP0250400	In Stock	$0.20903/EA	EA	EA
1/4	20	5	MPPP0250500	In Stock	$0.41962/EA	EA	EA
1/4	20	6	MPPP0250600	In Stock	$0.67154/EA	EA	EA
5/16	18	1/2	MPPP0310050	3-5 Working Days	$0.2676/EA	EA	EA
5/16	18	3/4	MPPP0310075	In Stock	$0.12428/EA	EA	EA
5/16	18	1	MPPP0310100	In Stock	$0.55335/EA	EA	EA
5/16	18	1 1/4	MPPP0310125	In Stock	$0.24518/EA	EA	EA
5/16	18	1 1/2	MPPP0310150	In Stock	$0.25031/EA	EA	EA
5/16	18	1 3/4	MPPP0310175	In Stock	$0.2409/EA	EA	EA
5/16	18	2	MPPP0310200	In Stock	$0.22333/EA	EA	EA
5/16	18	2 1/4	MPPP0310225	In Stock	$0.19002/EA	EA	EA
5/16	18	2 1/2	MPPP0310250	In Stock	$0.23753/EA	EA	EA
5/16	18	2 3/4	MPPP0310275	In Stock	$0.23753/EA	EA	EA
5/16	18	3	MPPP0310300	In Stock	$0.79145/EA	EA	EA
5/16	18	3 1/2	MPPP0310350	In Stock	$0.30181/EA	EA	EA
5/16	18	4	MPPP0310400	In Stock	$0.23753/EA	EA	EA
5/16	18	6	MPPP0310600	In Stock	$0.28504/EA	EA	EA
3/8	16	3/4	MPPP0370075	In Stock	$0.28651/EA	EA	EA
3/8	16	1	MPPP0370100	In Stock	$0.23753/EA	EA	EA
3/8	16	1 1/4	MPPP0370125	In Stock	$0.23753/EA	EA	EA
3/8	16	1 1/2	MPPP0370150	In Stock	$0.23753/EA	EA	EA
3/8	16	1 3/4	MPPP0370175	In Stock	$0.23753/EA	EA	EA
3/8	16	2	MPPP0370200	In Stock	$0.54143/EA	EA	EA
3/8	16	2 1/2	MPPP0370250	In Stock	$0.67017/EA	EA	EA
3/8	16	3	MPPP0370300	In Stock	$0.54556/EA	EA	EA
3/8	16	4	MPPP0370400	In Stock	$0.64375/EA	EA	EA
3/8	16	5	MPPP0370500	In Stock	$1.75368/EA	EA	EA
3/8	16	6	MPPP0370600	In Stock	$1.18822/EA	EA	EA
