Phillips Pan Head Self Tapping Screw, Plated

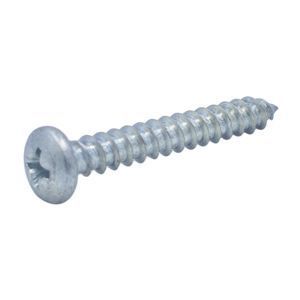

Self-tapping screws are fasteners that have a tapered point allowing the screw to thread itself into a pre-drilled hole, though some softer materials may not require pre-drilling. Type A self-tapping screws have coarse threads suitable for use in thin metal, composites, and wood in many cases. The threads taper down to the point, allowing the screw to form threads into the material as the screw is installed. Type A screws are often referred to as sheet metal screws, though they are not a self-drilling tek screw. The phillips drive pan head offers an attractive, smooth, rounded, relatively low-profile head design with a phillips drive. Phillips pan head type A self-tapping screws listed here have a zinc plated finish for added corrosion protection.

Dimensional SpecificationsType A Pan Head Self Tapping Screw

Type A Threads for Self Tapping Screws dimensions
ASME B18.6.3-2013
Nominal Size
or Basic Screw
Diameter
Threads
per Inch
D d Drill
Size
Recommended
Hole Diameter
Major
Diameter
Minor
Diameter
Max Min Max Min
#4 0.112 24 0.114 0.110 0.083 0.078 #44 0.0860
#5 0.125 20 0.130 0.126 0.095 0.090 #36 0.1065
#6 0.138 18 0.141 0.136 0.102 0.096 #32 0.1160
#7 0.151 16 0.158 0.152 0.114 0.108 #30 0.1285
#8 0.164 15 0.168 0.162 0.123 0.116 #29 0.1360
#10 0.190 12 0.194 0.188 0.133 0.126 #21 0.1590
#12 0.216 11 0.221 0.215 0.162 0.155 3/16 0.1875
#14 0.242 10 0.254 0.248 0.185 0.178 5.5mm 0.2165
  1. Tolerance on Length: Up to 1" incl.: +/- 0.03. Over 1": +/- 0.05.
  2. All dimensions are in inches.
Hex & Hex Washer Heads for Self-Tapping & Self-Drilling Screws dimensions
ASME B18.6.3-2013
Nominal
Size
A H1 M G N Phillips
Drive
Size
Head
Diameter
Height of
Head
Dimensions of Recess
Diameter Depth Width
Max Min Max Min Max Min Max Min
#4 0.219 0.205 0.080 0.070 0.122 0.109 0.078 0.019 1
#5 0.245 0.231 0.089 0.079 0.158 0.145 0.083 0.028 2
#6 0.270 0.256 0.097 0.087 0.166 0.153 0.091 0.028 2
#7 0.296 0.281 0.106 0.096 0.176 0.163 0.100 0.029 2
#8 0.322 0.306 0.115 0.105 0.182 0.169 0.108 0.030 2
#10 0.373 0.357 0.133 0.122 0.199 0.186 0.124 0.031 2
#12 0.425 0.407 0.151 0.139 0.259 0.246 0.141 0.034 3
#14 0.476 0.457 0.169 0.156 0.281 0.268 0.148 0.036 3
  1. All dimensions are in inches.
Phillips Pan Head Self Tapping Screw, Plated
View
Diameter Thread Pitch Length Item # Availability Price Quantity UOM
#4 24 1/2 TPPP 40050 In Stock $0.01442/EA EA
#4 24 3/4 TPPP 40075 3-5 Working Days $0.03457/EA EA
#4 24 1 TPPP 40100 In Stock $0.01854/EA EA
#6 18 3/8 TPPP 60037 In Stock $0.02232/EA EA
#6 18 1/2 TPPP 60050 In Stock $0.02267/EA EA
#6 18 3/4 TPPP 60075 In Stock $0.02393/EA EA
#6 18 1 TPPP 60100 In Stock $0.02645/EA EA
#6 18 1 1/4 TPPP 60125 3-5 Working Days $0.07082/EA EA
#6 18 1 1/2 TPPP 60150 In Stock $0.04269/EA EA
#6 18 2 TPPP 60200 3-5 Working Days $0.09461/EA EA
#8 15 3/8 TPPP 80037 In Stock $0.0247/EA EA
#8 15 1/2 TPPP 80050 In Stock $0.02589/EA EA
#8 15 5/8 TPPP 80062 In Stock $0.03646/EA EA
#8 15 3/4 TPPP 80075 In Stock $0.03884/EA EA
#8 15 1 TPPP 80100 In Stock $0.04584/EA EA
#8 15 1 1/4 TPPP 80125 In Stock $0.04038/EA EA
#8 15 1 1/2 TPPP 80150 In Stock $0.04031/EA EA
#8 15 2 TPPP 80200 In Stock $0.12134/EA EA
#8 15 2 1/2 TPPP 80250 3-5 Working Days $0.17159/EA EA
#8 15 3 TPPP 80300 3-5 Working Days $0.21015/EA EA
#10 12 1/2 TPPP 100050 In Stock $0.03618/EA EA
#10 12 3/4 TPPP 100075 In Stock $0.04479/EA EA
#10 12 1 TPPP 100100 In Stock $0.07824/EA EA
#10 12 1 1/4 TPPP 100125 In Stock $0.06515/EA EA
#10 12 1 1/2 TPPP 100150 In Stock $0.07173/EA EA
#10 12 1 3/4 TPPP 100175 In Stock $0.1282/EA EA
#10 12 2 TPPP 100200 In Stock $0.11512/EA EA
#10 12 2 1/2 TPPP 100250 In Stock $0.10462/EA EA
#10 12 3 TPPP 100300 3-5 Working Days $0.26823/EA EA
#12 11 1/2 TPPP 120050 In Stock $0.06669/EA EA
#12 11 3/4 TPPP 120075 In Stock $0.08188/EA EA
#12 11 1 TPPP 120100 In Stock $0.06711/EA EA
#12 11 1 1/4 TPPP 120125 In Stock $0.08397/EA EA
#12 11 1 1/2 TPPP 120150 In Stock $0.11372/EA EA
#12 11 2 TPPP 120200 In Stock $0.1501/EA EA
#12 11 2 1/2 TPPP 120250 In Stock $0.21344/EA EA
#12 11 3 TPPP 120300 In Stock $0.79496/EA EA
#14 10 1/2 TPPP 140050 In Stock $0.08293/EA EA
#14 10 3/4 TPPP 140075 In Stock $0.11631/EA EA
#14 10 1 TPPP 140100 In Stock $0.08761/EA EA
#14 10 1 1/4 TPPP 140125 In Stock $0.16851/EA EA
#14 10 1 1/2 TPPP 140150 In Stock $0.12939/EA EA
#14 10 2 TPPP 140200 In Stock $0.16067/EA EA
#14 10 2 1/2 TPPP 140250 In Stock $0.32351/EA EA
#14 10 3 TPPP 140300 In Stock $0.22498/EA EA
