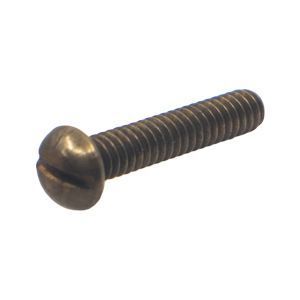

Silicon Bronze Slotted Round Head Machine Screw

Machine screws are uniformly threaded fasteners with a blunt end that are used with a threaded nut or threaded into a tapped hole. The round head offers a smooth, rounded head design with a slotted drive. These fasteners are available in silicone bronze.

Products
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsType 2A Threads for Machine Screws

Type 2A Threads for Machine Screws dimensions

ASME B1.1 (2008)
Nominal Size	Threads per Inch	Allowance	Major Diameter		Pitch Diameter			Stress Area in²
			Major Diameter		Pitch Diameter
			Max	Min	Max	Min	Tolerance
#0	80	0.0005	0.0595	0.0563	0.0514	0.0496	0.001762	0.00180
#1	64	0.0006	0.0724	0.0686	0.0623	0.0603	0.001970	0.00263
#1	72	0.0006	0.0724	0.0689	0.0634	0.0615	0.001899	0.00278
#2	56	0.0006	0.0854	0.0813	0.0738	0.0717	0.002127	0.00370
#2	64	0.0006	0.0854	0.0816	0.0753	0.0733	0.002040	0.00394
#3	48	0.0007	0.0983	0.0938	0.0848	0.0825	0.002302	0.00487
#3	56	0.0007	0.0983	0.0942	0.0867	0.0845	0.002191	0.00523
#4	40	0.0008	0.1112	0.1061	0.0950	0.0925	0.002507	0.00604
#4	48	0.0007	0.1113	0.1068	0.0978	0.0954	0.002361	0.00661
#5	40	0.0008	0.1242	0.1191	0.1080	0.1054	0.002562	0.00796
#5	44	0.0007	0.1243	0.1195	0.1095	0.1070	0.002484	0.00830
#6	32	0.0008	0.1372	0.1312	0.1169	0.1141	0.002820	0.00909
#6	40	0.0008	0.1372	0.1321	0.1210	0.1184	0.002614	0.01015
#8	32	0.0009	0.1631	0.1571	0.1428	0.1399	0.002916	0.01400
#8	36	0.0008	0.1632	0.1577	0.1452	0.1424	0.002804	0.01474
#10	24	0.0010	0.1890	0.1818	0.1619	0.1586	0.003319	0.01750
#10	32	0.0009	0.1891	0.1831	0.1688	0.1658	0.003004	0.02000
#12	24	0.0010	0.2150	0.2078	0.1879	0.1845	0.003400	0.02420
#12	28	0.0010	0.2150	0.2085	0.1918	0.1886	0.003224	0.02580
1/4	20	0.0011	0.2489	0.2408	0.2164	0.2127	0.003731	0.03180
1/4	28	0.0010	0.2490	0.2425	0.2258	0.2225	0.003322	0.03640
5/16	18	0.0012	0.3113	0.3026	0.2752	0.2712	0.004041	0.05240
5/16	24	0.0011	0.3114	0.3042	0.2843	0.2806	0.003660	0.05800
3/8	16	0.0013	0.3737	0.3643	0.3331	0.3287	0.004363	0.07750
3/8	24	0.0011	0.3739	0.3667	0.3468	0.3430	0.003804	0.08780
1/2	13	0.0015	0.4985	0.4876	0.4485	0.4435	0.004965	0.14190
1/2	20	0.0013	0.4987	0.4906	0.4662	0.4619	0.004288	0.15990

Nominal Screw Size	Nominal Screw Length (L) Tolerance
	Up to 1/2 in., incl.	Over 1/2 to 1 in., incl.	Over 1 to 2 in., incl.	Over 2 in.
0 thru 12	-0.02	-0.03	-0.06	-0.09
1/4 thru 3/4	-0.03	-0.03	-0.06	-0.09

All dimensions are in inches.

Dimensional SpecificationsSlotted Round Head for Machine Screws

Slotted Round Head for Machine Screws dimensions

ASME B18.6.3-2013
Nominal Size	A		H		J		T		M		G	N	Phillips Drive Size
	Head Dimensions				Slot Dimensions				Phillips Dimensions
	Head Dimensions				Slot Dimensions				Phillips Dimensions
	Diameter		Height		Width		Depth		Diameter		Depth	Width
	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min	Max	Min
#2	0.162	0.146	0.069	0.059	0.031	0.023	0.048	0.037	0.100	0.087	0.053	0.017	1
#3	0.187	0.169	0.078	0.067	0.035	0.027	0.053	0.040	0.109	0.096	0.062	0.018	1
#4	0.211	0.193	0.086	0.075	0.039	0.031	0.058	0.044	0.118	0.105	0.072	0.019	1
#5	0.236	0.217	0.095	0.083	0.043	0.035	0.063	0.047	0.154	0.141	0.074	0.027	2
#6	0.260	0.240	0.103	0.091	0.048	0.039	0.068	0.051	0.162	0.149	0.084	0.027	2
#8	0.309	0.287	0.120	0.107	0.054	0.045	0.077	0.058	0.178	0.165	0.101	0.030	2
#10	0.359	0.334	0.137	0.123	0.060	0.050	0.087	0.065	0.195	0.182	0.119	0.031	2
#12	0.408	0.382	0.153	0.139	0.067	0.056	0.096	0.073	0.249	0.236	0.125	0.032	3
1/4	0.472	0.443	0.175	0.160	0.075	0.064	0.109	0.082	0.268	0.255	0.147	0.034	3
5/16	0.590	0.557	0.216	0.198	0.084	0.072	0.132	0.099	0.308	0.295	0.187	0.040	3
3/8	0.708	0.670	0.256	0.237	0.094	0.081	0.155	0.117	0.387	0.374	0.228	0.064	4
1/2	0.813	0.766	0.355	0.332	0.106	0.091	0.211	0.159	0.416	0.403	0.256	0.068	4

All dimensions are in inches.

Silicon Bronze Slotted Round Head Machine Screw

of 1

Sort By

View

Diameter Length Item # Availability Price Quantity UOM

#10

1/2

MRSL1030050

In Stock

$0.70669/EA

See Quantity Discounts

#10-32 X 1/2 SILICON BRONZE SLOTTED ROUND HEAD MACHINE SCREW

$0.70669/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.70669/ EA
1590	$0.65892/ EA
6350	$0.62221/ EA
28580	$0.42327/ EA

#10

3/4

MRSL1030075

In Stock

$0.56067/EA

See Quantity Discounts

#10-32 X 3/4 SILICON BRONZE SLOTTED ROUND HEAD MACHINE SCREW

$0.56067/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.56067/ EA
1250	$0.52278/ EA
5000	$0.49365/ EA
22500	$0.33581/ EA

#10

MRSL1030100

In Stock

$0.72087/EA

See Quantity Discounts

#10-32 X 1 SILICON BRONZE SLOTTED ROUND HEAD MACHINE SCREW

$0.72087/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.72087/ EA
1040	$0.67214/ EA
4130	$0.6347/ EA
18560	$0.43176/ EA

1/4

1/2

MRSL0250050

In Stock

$1.14001/EA

See Quantity Discounts

1/4-20 X 1/2 SILICON BRONZE SLOTTED ROUND HEAD MACHINE SCREW

$1.14001/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$1.14001/ EA
800	$1.06296/ EA
3180	$1.00374/ EA
14290	$0.6828/ EA

1/4

3/4

MRSL0250075

In Stock

$0.84674/EA

See Quantity Discounts

1/4-20 X 3/4 SILICON BRONZE SLOTTED ROUND HEAD MACHINE SCREW

$0.84674/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$0.84674/ EA
680	$0.78951/ EA
2710	$0.74552/ EA
12170	$0.50715/ EA

1/4

MRSL0250100

In Stock

$1.40669/EA

See Quantity Discounts

1/4-20 X 1 SILICON BRONZE SLOTTED ROUND HEAD MACHINE SCREW

$1.40669/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$1.40669/ EA
580	$1.31161/ EA
2290	$1.23854/ EA
10290	$0.84253/ EA

Silicon Bronze Slotted Round Head Machine Screw

Technical Data

Dimensional Specifications

Dimensional SpecificationsType 2A Threads for Machine Screws

Dimensional SpecificationsSlotted Round Head for Machine Screws

Diameter

Thread Pitch

Length

Thread Type

Head Diam

Drive Size

#10-32 X 1/2 SILICON BRONZE SLOTTED ROUND HEAD MACHINE SCREW

#10-32 X 3/4 SILICON BRONZE SLOTTED ROUND HEAD MACHINE SCREW

#10-32 X 1 SILICON BRONZE SLOTTED ROUND HEAD MACHINE SCREW

1/4-20 X 1/2 SILICON BRONZE SLOTTED ROUND HEAD MACHINE SCREW

1/4-20 X 3/4 SILICON BRONZE SLOTTED ROUND HEAD MACHINE SCREW

1/4-20 X 1 SILICON BRONZE SLOTTED ROUND HEAD MACHINE SCREW
