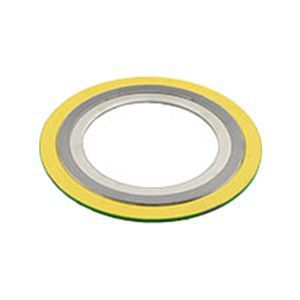

316 SS Spiral Wound FG, 316 SS IR, CS OR

Spiral wound gaskets listed below consist of a 316 stainless steel inner ring, 316 windings with flexible graphite filler, and a carbon steel outer ring. Spiral wound gaskets are metallic gaskets consisting of an outer centering ring (also known as OCR, OR, or an outer guide ring), metallic windings with a soft filler material, and a solid inner ring, or any combination of the three. These gaskets are manufactured to meet specifications as outlined in ASME B16.20 (previously covered by API 601). Spiral-wound gaskets can handle more harsh and varied operating conditions than non-asbestos sheet gaskets in general. They are available in multiple materials and configurations.

Products
Governing Standards
Color Codes
Dimensional Specifications

Color Codes

Color CodesSpiral Wound Gasket

Spiral wound gaskets shall be marked with a color code that identifies the windings and filler materials. A continuous color around the outer edge of the centering ring shall identify the winding metal. The color identifying the filler material for NPS 1 1/2 and larger shall have four intermittent stripes spaced approximately 90 deg apart on the outer edge of the centering ring. Smaller size gaskets shall have a minimum of two stripes 180 deg apart. The colors shall conform to those listed in the table below.

Per ASME B16.20-2007
Metallic Winding Materials	OD Color Code
Carbon Steel	Silver
304 Stainless Steel	Yellow
316L Stainless Steel	Green
317L Stainless Steel	Maroon
321 Stainless Steel	Turquoise
347 Stainless Steel	Blue
Monel 400	Orange
Nickel 200	Red
Titanium	Purple
20Cb-3 Alloy	Black
Hastelloy B	Brown
Hastelloy C	Beige
Inconel 600	Gold
Incoloy 800	White

Per ASME B16.20-2007
Nonmetallic Filler Materials	Color Code
Polytetrafluoroethylene	White Stripe
Mica-Graphite	Pink Stripe
Flexible Graphite	Gray Stripe
Ceramic	Light Green Stripe

Dimensional Specifications

Dimensional SpecificationsSpiral Wound Gasket

Per ASME B16.20-2017
		Pipe Diameter
		1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14	16	18	20	24
Inner Ring ID per Class	150#	0.56	0.81	1.06	1.50	1.75	2.19	2.62	3.19	4.19	5.19	6.19	8.50	10.56	12.50	13.75	15.75	17.69	19.69	23.75
	300#	0.56	0.81	1.06	1.50	1.75	2.19	2.62	3.19	4.19	5.19	6.19	8.50	10.56	12.50	13.75	15.75	17.69	19.69	23.75
	600#	0.56	0.81	1.06	1.50	1.75	2.19	2.62	3.19	4.04	5.05	6.10	8.10	10.05	12.10	13.50	15.35	17.25	19.25	23.25
	900#	0.56	0.81	1.06	1.31	1.63	2.06	2.50	3.10	4.05	5.05	6.10	7.75	9.69	11.50	12.63	14.75	16.75	19.00	23.25
	1500#	0.56	0.81	1.06	1.31	1.63	2.06	2.50	3.10	3.85	4.90	5.80	7.75	9.69	11.50	12.63	14.50	16.75	18.75	22.75
	2500#	0.56	0.81	1.06	1.31	1.63	2.06	2.50	3.10	3.85	4.90	5.80	7.75	9.69	11.50
Winding ID per Class	150#	0.75	1.00	1.25	1.88	2.13	2.75	3.25	4.00	5.00	6.13	7.19	9.19	11.31	13.38	14.63	16.63	18.69	20.69	24.75
	300#	0.75	1.00	1.25	1.88	2.13	2.75	3.25	4.00	5.00	6.13	7.19	9.19	11.31	13.38	14.63	16.63	18.69	20.69	24.75
	600#	0.75	1.00	1.25	1.88	2.13	2.75	3.25	4.00	4.75	5.81	6.88	8.88	10.81	12.88	14.25	16.25	18.50	20.50	24.75
	900#	0.75	1.00	1.25	1.56	1.80	2.31	2.75	3.75	4.75	5.81	6.88	8.75	10.88	12.75	14.00	16.25	18.25	20.50	24.75
	1500#	0.75	1.00	1.25	1.56	1.80	2.31	2.75	3.63	4.63	5.63	6.75	8.50	10.50	12.75	14.00	16.00	18.25	20.25	25.25
	2500#	0.75	1.00	1.25	1.56	1.88	2.31	2.75	3.63	4.63	5.63	6.75	8.50	10.93	12.50
Winding OD per Class	150#	1.25	1.56	1.88	2.38	2.75	3.38	3.88	4.75	5.88	7.00	8.25	10.38	12.50	14.75	16.00	18.25	20.75	22.75	27.00
	300#	1.25	1.56	1.88	2.38	2.75	3.38	3.88	4.75	5.88	7.00	8.25	10.38	12.50	14.75	16.00	18.25	20.75	22.75	27.00
	600#	1.25	1.56	1.88	2.38	2.75	3.38	3.88	4.75	5.88	7.00	8.25	10.38	12.50	14.75	16.00	18.25	20.75	22.75	27.00
	900#	1.25	1.56	1.88	2.38	2.75	3.38	3.88	4.75	5.88	7.00	8.25	10.13	12.25	14.50	15.75	18.00	22.50	22.50	26.75
	1500#	1.25	1.56	1.88	2.38	2.75	3.38	3.88	4.75	5.88	7.00	8.25	10.13	12.25	14.50	15.75	18.00	22.50	22.50	26.75
	2500#	1.25	1.56	1.88	2.38	2.75	3.38	3.88	4.75	5.88	7.00	8.25	10.13	12.25	14.50
Outer Ring OD per Class	150#	1.88	2.25	2.63	3.00	3.38	4.13	4.88	5.38	6.88	7.75	8.75	11.00	13.38	16.13	17.75	20.25	21.63	23.88	28.25
	300#	2.13	2.50	2.88	3.25	3.75	4.38	5.13	5.88	7.13	8.50	9.88	12.13	14.25	16.63	19.13	21.25	23.50	25.75	30.50
	600#	2.13	2.50	2.88	3.25	3.75	4.38	5.13	5.88	7.63	9.50	10.50	12.63	15.75	18.00	19.38	22.25	24.13	26.88	31.13
	900#	2.50	2.75	3.13	3.50	3.88	5.63	6.50	6.63	8.13	9.75	11.38	14.13	17.13	19.63	20.50	22.63	25.13	27.50	33.00
	1500#	2.50	2.75	3.13	3.50	3.88	5.63	6.50	6.88	8.25	10.00	11.13	13.88	17.13	20.50	22.75	25.25	27.75	29.75	35.50
	2500#	2.75	2.25	3.38	4.13	4.63	5.75	6.63	7.75	9.25	11.00	12.50	15.25	18.75	21.63

Per ASME B16.47-2017
Series A		Pipe Diameter
Series A		26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
Inner Ring ID per Class	150#	25.75	27.75	29.75	31.75	33.75	35.75	37.75	39.75	41.75	43.75	45.75	47.75	49.75	51.75	53.50	55.50	57.50	59.50
	300#	25.75	27.75	29.75	31.75	33.75	35.75	37.50	39.50	41.50	43.50	45.38	47.63	49.00	52.00	53.25	55.25	57.00	60.00
	600#	25.50	27.50	29.75	32.00	34.00	36.13	37.50	39.75	42.00	43.75	45.75	48.00	50.00	52.00	54.25	56.25	58.00	60.25
	900#	26.00	28.00	30.25	32.00	34.00	36.25	39.75	41.75	43.75	45.50	48.00	50.00
Winding ID per Class	150#	26.50	28.50	30.50	32.50	34.50	36.50	38.50	40.50	42.50	44.50	46.50	48.50	50.50	52.50	54.50	56.50	58.50	60.50
	300#	27.00	29.00	31.25	33.50	35.50	37.63	38.50	40.25	42.25	44.50	46.38	48.63	51.00	53.00	55.25	57.25	59.50	61.50
	600#	27.00	29.00	31.25	33.50	35.50	37.63	39.00	41.25	43.50	45.75	47.75	50.00	52.00	54.00	56.25	58.25	60.50	62.75
	900#	27.00	29.00	31.25	33.50	35.50	37.75	40.75	43.25	45.25	47.50	50.00	52.00
Winding OD per Class	150#	27.75	29.75	31.75	33.88	35.88	38.13	40.13	42.13	44.25	46.38	48.38	50.38	52.50	54.50	56.50	58.50	60.50	62.50
	300#	29.00	31.00	33.25	35.50	37.50	39.63	40.00	42.13	44.13	46.50	48.38	50.63	53.00	55.00	57.25	59.25	61.50	63.50
	600#	29.00	31.00	33.25	35.50	37.50	39.63	41.00	43.25	45.50	47.75	49.75	52.00	54.00	56.00	58.25	60.25	62.50	64.75
	900#	29.00	31.00	33.25	35.50	37.50	39.75	42.75	45.25	47.25	49.50	52.00	54.00
Outer Ring OD per Class	150#	30.50	32.75	34.75	37.00	39.00	41.25	43.75	45.75	48.00	50.25	52.25	54.50	56.50	58.75	61.00	63.25	65.50	67.50
	300#	32.88	35.38	37.50	39.63	41.63	44.00	41.50	43.88	45.88	48.00	50.13	52.13	54.25	56.25	58.75	60.75	62.75	64.75
	600#	34.13	36.00	38.25	40.25	42.25	44.50	43.50	45.50	48.00	50.00	52.25	54.75	57.00	59.00	61.25	63.50	65.50	68.25
	900#	34.75	37.25	39.75	42.25	44.75	47.25	47.25	49.25	51.25	53.88	56.50	58.50
Per ASME B16.47-2017
Series B		Pipe Diameter
Series B		26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
Inner Ring ID per Class	150#	25.75	27.75	29.75	31.75	33.75	35.75	37.75	39.75	41.75	43.75	45.75	47.75	49.75	51.75	53.75	56.00	58.19	60.44
	300#	25.75	27.75	29.75	31.75	33.75	35.75	38.25	40.25	42.75	44.25	46.38	48.50	49.88	51.88	53.75	56.25	58.44	61.31
	600#	25.38	27.00	29.63	31.25	33.50	35.50	37.50	39.75	42.00	43.75	45.75	48.00	50.00	52.00	54.25	56.25	58.00	60.25
	900#	26.25	28.25	30.75	33.00	35.25	36.25	39.75	41.75	43.75	45.50	48.00	50.00
Winding ID per Class	150#	26.50	28.50	30.50	32.50	34.50	36.50	38.37	40.25	42.50	44.25	46.50	48.50	50.50	52.50	54.50	56.88	59.07	61.31
	300#	26.50	28.50	30.50	32.50	34.50	36.50	39.75	41.75	43.75	45.75	47.88	49.75	51.88	53.88	55.25	58.25	60.44	62.56
	600#	26.13	27.75	30.63	32.75	35.00	37.00	39.00	41.25	43.50	45.75	47.75	50.00	52.00	54.00	56.25	58.25	60.50	62.75
	900#	27.25	29.25	31.75	34.00	36.25	37.25	40.75	43.25	45.25	47.50	50.00	52.00
Winding OD per Class	150#	27.50	29.50	31.50	33.50	35.75	37.75	39.75	41.88	43.88	45.88	48.19	50.00	52.19	54.19	56.00	58.18	60.19	62.44
	300#	28.00	30.00	32.00	34.00	36.00	38.00	41.25	43.25	45.25	47.25	49.38	51.63	53.38	55.38	57.25	60.00	61.94	64.19
	600#	28.13	29.75	32.63	34.75	37.00	39.00	41.00	43.25	45.50	47.75	49.75	52.00	56.00	56.00	58.25	60.25	62.50	64.75
	900#	29.50	31.50	33.75	36.00	38.25	39.25	42.75	45.25	47.25	49.50	52.00	54.00
Outer Ring OD per Class	150#	28.56	30.56	32.56	34.69	36.81	38.88	41.13	43.13	45.13	47.13	49.44	51.44	53.44	55.44	57.63	59.63	62.19	64.19
	300#	30.38	32.50	34.88	37.00	39.13	41.25	43.25	45.25	47.25	49.25	51.88	53.88	55.88	57.88	60.25	62.75	65.19	67.19
	600#	30.13	32.25	34.63	36.75	39.25	41.25	43.50	45.50	48.00	50.00	52.25	54.75	57.00	59.00	61.25	63.50	65.50	68.25
	900#	33.00	35.50	37.75	40.00	42.25	44.25	47.25	49.25	51.25	53.88	56.50	58.50

All dimensions are in inches.
