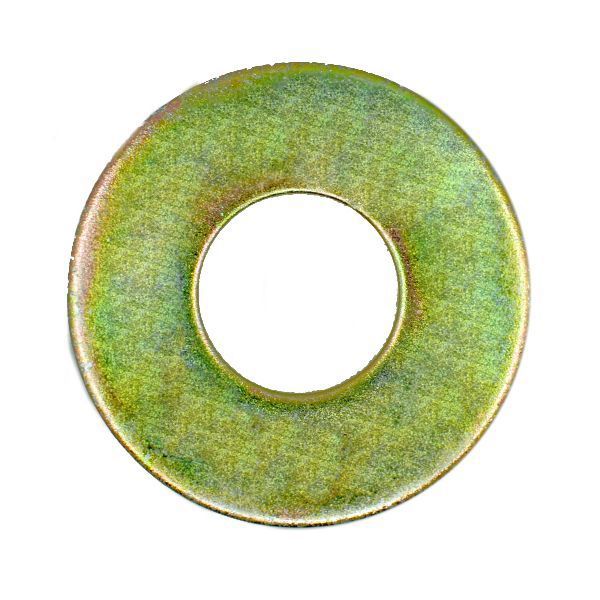

Thru Hardened USS Flat Washer, Plated

Thru-hardened USS flat washers are used under bolt heads or nuts to increase the bearing surface area, or to offer protection so that the nut or bolt can be rotated without distortion of the bearing surface. Flat washers are also used to give tightness to a joint, to prevent leakage, and especially to distribute pressure under the head of a bolt or nut. Dimensional specifications are governed by ASME B18.21.1. USS (United States Standard) flat washers have a larger outer diameter than SAE (Society of Automotive Engineers) flat washers, and can be utilized in nearly any application. Available in zinc plated finish. Zinc plating sacrifices itself, corroding before the base material, offering added corrosion resistance.

Technical Data

Governing StandardsThru Hardened USS Flat Washer

ASME B18.21.1

Covers the dimensional requirements, physical properties, and related test methods for helical spring-lock washers (#0 through 3 inches), tooth-lock washers (#2 through 1 ¼ inches), and plain washers (#0 through 3 inches).

Dimensional SpecificationsThru Hardened USS Flat Washer

Per ASME B18.21.1-2009
Size	Nominal	A			B			C
		Inside Diameter			Outside Diameter			Mean Section Thickness
		Basic	Tolerance Plus	Tolerance Minus	Basic	Tolerance Plus	Tolerance Minus	Basic	Max	Min
		Basic	Tolerance Plus	Tolerance Minus	Basic	Tolerance Plus	Tolerance Minus	Basic	Max	Min
#6	0.1380	0.1560	0.0080	0.0050	0.3750	0.0150	0.0050	0.0490	0.0650	0.0360
#8	0.1640	0.1880	0.0080	0.0050	0.4380	0.0150	0.0050	0.0490	0.0650	0.0360
#10	0.1900	0.2190	0.0080	0.0050	0.5000	0.0150	0.0050	0.0490	0.0650	0.0360
#12	0.2160	0.2500	0.0150	0.0050	0.5620	0.0150	0.0050	0.0650	0.0800	0.0510
1/4	0.2500	0.3120	0.0150	0.0050	0.7340	0.0150	0.0070	0.0650	0.0800	0.0510
5/16	0.3125	0.3750	0.0150	0.0050	0.8750	0.0300	0.0070	0.0830	0.1040	0.0640
3/8	0.3750	0.4380	0.0150	0.0050	1.0000	0.0300	0.0070	0.0830	0.1040	0.0640
7/16	0.4375	0.5000	0.0150	0.0050	1.2500	0.0300	0.0070	0.0830	0.1040	0.0640
1/2	0.5000	0.5620	0.0150	0.0050	1.3750	0.0300	0.0070	0.1090	0.1320	0.0860
9/16	0.5625	0.6250	0.0150	0.0050	1.4690	0.0300	0.0070	0.1090	0.1320	0.0860
5/8	0.6250	0.6880	0.0300	0.0070	1.7500	0.0300	0.0070	0.1340	0.1600	0.1080
3/4	0.7500	0.8120	0.0300	0.0070	2.0000	0.0300	0.0070	0.1480	0.1770	0.1220
7/8	0.8750	0.9380	0.0300	0.0070	2.2500	0.0300	0.0070	0.1650	0.1920	0.1360
1	1.0000	1.2500	0.0300	0.0070	2.5000	0.0300	0.0070	0.1650	0.1920	0.1360
1 1/8	1.1250	1.3750	0.0300	0.0070	2.7500	0.0300	0.0070	0.1650	0.1920	0.1360
1 1/4	1.2500	1.3750	0.0300	0.0070	3.0000	0.0300	0.0070	0.1650	0.1920	0.1360
1 3/8	1.3750	1.5000	0.0450	0.0100	3.2500	0.0450	0.1000	0.1800	0.2130	0.1530
1 1/2	1.5000	1.6250	0.0450	0.0100	3.5000	0.0450	0.0100	0.1800	0.2130	0.1530
1 5/8	1.6250	1.7500	0.0450	0.0100	3.7500	0.0450	0.0100	0.1800	0.2130	0.1530
1 3/4	1.7500	1.8750	0.0450	0.0100	4.0000	0.0450	0.0100	0.1800	0.2130	0.1530
1 7/8	1.8750	2.0000	0.0450	0.0100	4.2500	0.0450	0.0100	0.1800	0.2130	0.1530
2	2.0000	2.1250	0.0450	0.0100	4.5000	0.0450	0.0100	0.1800	0.2130	0.1530
2 1/4	2.2500	2.3750	0.0450	0.0100	4.7500	0.0450	0.0100	0.2200	0.2480	0.1930
2 1/2	2.5000	2.6250	0.0450	0.0100	5.0000	0.0450	0.0100	0.2380	0.2800	0.2100
2 3/4	2.7500	2.8750	0.0650	0.0100	5.2500	0.0650	0.0100	0.2590	0.3100	0.2280
3	3.0000	3.1250	0.0650	0.0100	5.5000	0.0650	0.0100	0.2840	0.3270	0.2490

All dimensions are in inches.

Thru Hardened USS Flat Washer, Plated

of 1

Sort By

Show

View

Diameter	Inside Diameter	Outside Diameter	Thickness	Item #	Availability	Price	Quantity
1/4	0.3120	0.7340	0.0650	WF8P025	In Stock	$0.04018/EA	EA	EA
5/16	0.3750	0.8750	0.0830	WF8P031	In Stock	$0.09963/EA	EA	EA
3/8	0.4380	1.0	0.0830	WF8P037	In Stock	$0.08069/EA	EA	EA
7/16	0.5	1.25	0.0830	WF8P043	In Stock	$0.11094/EA	EA	EA
1/2	0.5620	1.3750	0.1090	WF8P050	In Stock	$0.19013/EA	EA	EA
9/16	0.6250	1.4690	0.1090	WF8P056	In Stock	$0.2515/EA	EA	EA
5/8	0.6880	1.75	0.1340	WF8P062	In Stock	$0.36812/EA	EA	EA
3/4	0.8120	2.0	0.1480	WF8P075	In Stock	$0.51693/EA	EA	EA
7/8	0.9380	2.25	0.1650	WF8P087	In Stock	$1.10528/EA	EA	EA
1	1.25	2.5	0.1650	WF8P100	In Stock	$0.9201/EA	EA	EA
1 1/8	1.3750	2.75	0.1650	WF8P112	In Stock	$1.40037/EA	EA	EA
1 1/4	1.3750	3.0	0.1650	WF8P125	In Stock	$1.65971/EA	EA	EA
1 3/8	1.5	3.25	0.18	WF8P137	3-5 Working Days	$7.69188/EA	EA	EA
1 1/2	1.6250	3.5	0.18	WF8P150	In Stock	$2.41409/EA	EA	EA
