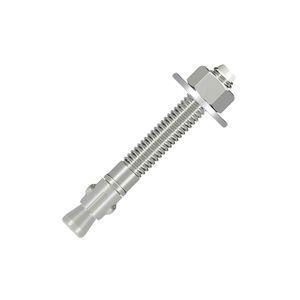

304 SS Wedge Anchor
Choose Favorites List

304 SS Wedge Anchor

304 SS Wedge Anchor

The Wedge-All® Wedge Anchors are a non-bottom bearing, wedge-style expansion anchor for use in solid concrete or grout-filled concrete masonry. A one-piece clip ensures uniform holding capacity that increases as tension is applied. Available in type 303/304 stainless steel.

InstallationWedge Anchor

1. Drill a hole in base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth.









2. Blow hole clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate the embedment depth and the dust from drilling.









3. Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor. Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.









4. Tighten to the required installation torque.















CAUTION:

•Do not use an impact wrench to set or tighten anchors

•Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity

Dimensional SpecificationsWedge Anchors

Figure 212 Medium Pipe Clamp





Diameter Drill
Size		 Wrench
Size		 Embed
Depth		 Critical
Edge
Distance		 Critical
Spacing		 Standard Lengths Box
Qty
1/4 1/4 7/16 1 1/8 2 1/2 1 5/8 1 3/4 2 1/4 3 1/4 100
2 1/4 2 1/2 3 1/8
3/8 3/8 9/16 1 3/4 3 3/4 2 3/8 2 1/4 2 3/4 3 50
2 5/8 3 3/4 3 5/8 3 1/2 3 3/4 5
3 3/8 3 3/4 4 3/4 7
1/2 1/2 3/4 2 1/4 5 3 1/8 2 3/4 3 3/4 4 1/4 25
3 3/8 5 4 3/4 5 1/2 7 8 1/2
4 1/2 5 6 1/4 10 12
5/8 5/8 15/16 2 3/4 6 1/4 3 7/8 3 1/2 4 1/2 5 20
4 1/2 6 1/4 6 1/4 6 7 8 1/2
5 1/2 6 1/4 7 3/4 10 12   10
3/4 3/4 1 1/8 3 3/8 7 1/2 4 3/4 4 1/4 4 3/4 5 1/2 10
5 7 1/2 7 6 1/4 7 8 1/2
6 3/4 7 1/2 9 1/2 10 12   5
7/8 7/8 1 5/16 3 7/8 8 3/4 5 3/8 6 8 10 5
7 7/8 8 3/4 11 12
1 1 1 1/2 4 1/2 10 6 1/4 6 9 12 5
9 10 12 5/8
1 1/4 1 1/4 1 7/8 5 5/8 12 1/2 7 7/8 9 12   5
9 1/2 12 1/2 13 1/4
  1. All dimensions are in inches.
  2. The published length is the overall length of the anchor. Allow one anchor diameter for the nut and washer thickness plus the fixture thickness when selecting the minimum length.
  3. Data valid for installation in normal-weight concrete.
304 SS Wedge Anchor
View
Diameter Length With Nut? Item # Availability Price Quantity UOM
1/4 1 3/4 With Nut & Washer AWES0250175 In Stock $1.34654/EA EA
1/4 2 1/4 With Nut & Washer AWES0250225 In Stock $0.81022/EA EA
1/4 3 1/4 With Nut & Washer AWES0250325 In Stock $0.90445/EA EA
3/8 2 1/4 With Nut & Washer AWES0370225 In Stock $2.25734/EA EA
3/8 2 3/4 With Nut & Washer AWES0370275 In Stock $2.94849/EA EA
3/8 3 With Nut & Washer AWES0370300 In Stock $2.58249/EA EA
3/8 3 1/2 With Nut & Washer AWES0370350 In Stock $3.0422/EA EA
3/8 3 3/4 With Nut & Washer AWES0370375 In Stock $1.56635/EA EA
3/8 5 With Nut & Washer AWES0370500 In Stock $2.30712/EA EA
3/8 7 With Nut & Washer AWES0370700 In Stock $5.08183/EA EA
1/2 2 3/4 With Nut & Washer AWES0500275 In Stock $3.99081/EA EA
1/2 3 3/4 With Nut & Washer AWES0500375 In Stock $4.37585/EA EA
1/2 4 1/4 With Nut & Washer AWES0500425 In Stock $3.73224/EA EA
1/2 5 1/2 With Nut & Washer AWES0500550 In Stock $4.40962/EA EA
1/2 7 With Nut & Washer AWES0500700 In Stock $4.52435/EA EA
1/2 8 1/2 With Nut & Washer AWES0500850 In Stock $10.2785/EA EA
1/2 10 With Nut & Washer AWES0501000 In Stock $19.59684/EA EA
1/2 12 With Nut & Washer AWES0501200 In Stock $34.89193/EA EA
5/8 3 1/2 With Nut & Washer AWES0620350 In Stock $7.91889/EA EA
5/8 4 1/2 With Nut & Washer AWES0620450 In Stock $8.91473/EA EA
5/8 5 With Nut & Washer AWES0620500 In Stock $10.22906/EA EA
5/8 6 With Nut & Washer AWES0620600 In Stock $7.03497/EA EA
5/8 7 With Nut & Washer AWES0620700 In Stock $12.85877/EA EA
5/8 8 1/2 With Nut & Washer AWES0620850 In Stock $17.35734/EA EA
5/8 10 With Nut & Washer AWES0621000 In Stock $28.68048/EA EA
5/8 12 With Nut & Washer AWES0621200 In Stock $33.54866/EA EA
3/4 4 1/4 With Nut & Washer AWES0750425 In Stock $10.67982/EA EA
3/4 4 3/4 With Nut & Washer AWES0750475 In Stock $11.08487/EA EA
3/4 5 1/2 With Nut & Washer AWES0750550 In Stock $11.82888/EA EA
3/4 6 1/4 With Nut & Washer AWES0750625 In Stock $13.16259/EA EA
3/4 7 With Nut & Washer AWES0750700 In Stock $18.63586/EA EA
3/4 8 1/2 With Nut & Washer AWES0750850 In Stock $20.12633/EA EA
3/4 10 With Nut & Washer AWES0751000 In Stock $25.75705/EA EA
3/4 12 With Nut & Washer AWES0751200 In Stock $38.1137/EA EA
7/8 6 With Nut & Washer AWES0870600 In Stock $41.70459/EA EA
7/8 8 With Nut & Washer AWES0870800 In Stock $49.44424/EA EA
7/8 10 With Nut & Washer AWES0871000 In Stock $56.69681/EA EA
7/8 12 With Nut & Washer AWES0871200 3-5 Working Days $56.69825/EA EA
1 6 With Nut & Washer AWES1000600 3-5 Working Days $65.2828/EA EA
1 9 With Nut & Washer AWES1000900 In Stock $65.48952/EA EA
1 12 With Nut & Washer AWES1001200 In Stock $76.68676/EA EA
