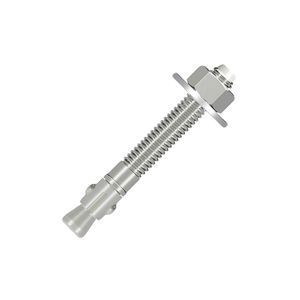

316 SS Wedge Anchor

Wedge Anchors are a non-bottom bearing, wedge-style expansion anchor for use in solid concrete or grout-filled concrete masonry. A one-piece clip ensures uniform holding capacity that increases as tension is applied. Installation is simple, utilizing standard hole sizes equal to the anchor bolt diameter. Wedge Anchors are among the most common and economical anchoring option for existing concrete. Available in 304 stainless steel or 316 stainless steel. 316 stainless steel fasteners are commonly used in applications that require general atmospheric corrosion resistance, such as chemical and food processing equipment. 316 stainless steel has a higher corrosion resistance than 18-8 or 304 stainless steel.

Products
Installation
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsWedge Anchors

Wedge Anchors

Diameter	Drill Size	Wrench Size	Embed Depth	Critical Edge Distance	Critical Spacing	Standard Lengths			Box Qty
1/4	1/4	7/16	1 1/8	2 1/2	1 5/8	1 3/4	2 1/4	3 1/4	100
1/4	1/4	7/16	2 1/4	2 1/2	3 1/8				100
3/8	3/8	9/16	1 3/4	3 3/4	2 3/8	2 1/4	2 3/4	3	50
			2 5/8	3 3/4	3 5/8	3 1/2	3 3/4	5
			3 3/8	3 3/4	4 3/4	7
1/2	1/2	3/4	2 1/4	5	3 1/8	2 3/4	3 3/4	4 1/4	25
			3 3/8	5	4 3/4	5 1/2	7	8 1/2
			4 1/2	5	6 1/4	10	12
5/8	5/8	15/16	2 3/4	6 1/4	3 7/8	3 1/2	4 1/2	5	20
			4 1/2	6 1/4	6 1/4	6	7	8 1/2	20
			5 1/2	6 1/4	7 3/4	10	12		10
3/4	3/4	1 1/8	3 3/8	7 1/2	4 3/4	4 1/4	4 3/4	5 1/2	10
			5	7 1/2	7	6 1/4	7	8 1/2	10
			6 3/4	7 1/2	9 1/2	10	12		5
7/8	7/8	1 5/16	3 7/8	8 3/4	5 3/8	6	8	10	5
7/8	7/8	1 5/16	7 7/8	8 3/4	11	12			5
1	1	1 1/2	4 1/2	10	6 1/4	6	9	12	5
1	1	1 1/2	9	10	12 5/8				5
1 1/4	1 1/4	1 7/8	5 5/8	12 1/2	7 7/8	9	12		5
1 1/4	1 1/4	1 7/8	9 1/2	12 1/2	13 1/4				5

All dimensions are in inches.
The published length is the overall length of the anchor. Allow one anchor diameter for the nut and washer thickness plus the fixture thickness when selecting the minimum length.
Data valid for installation in normal-weight concrete.
